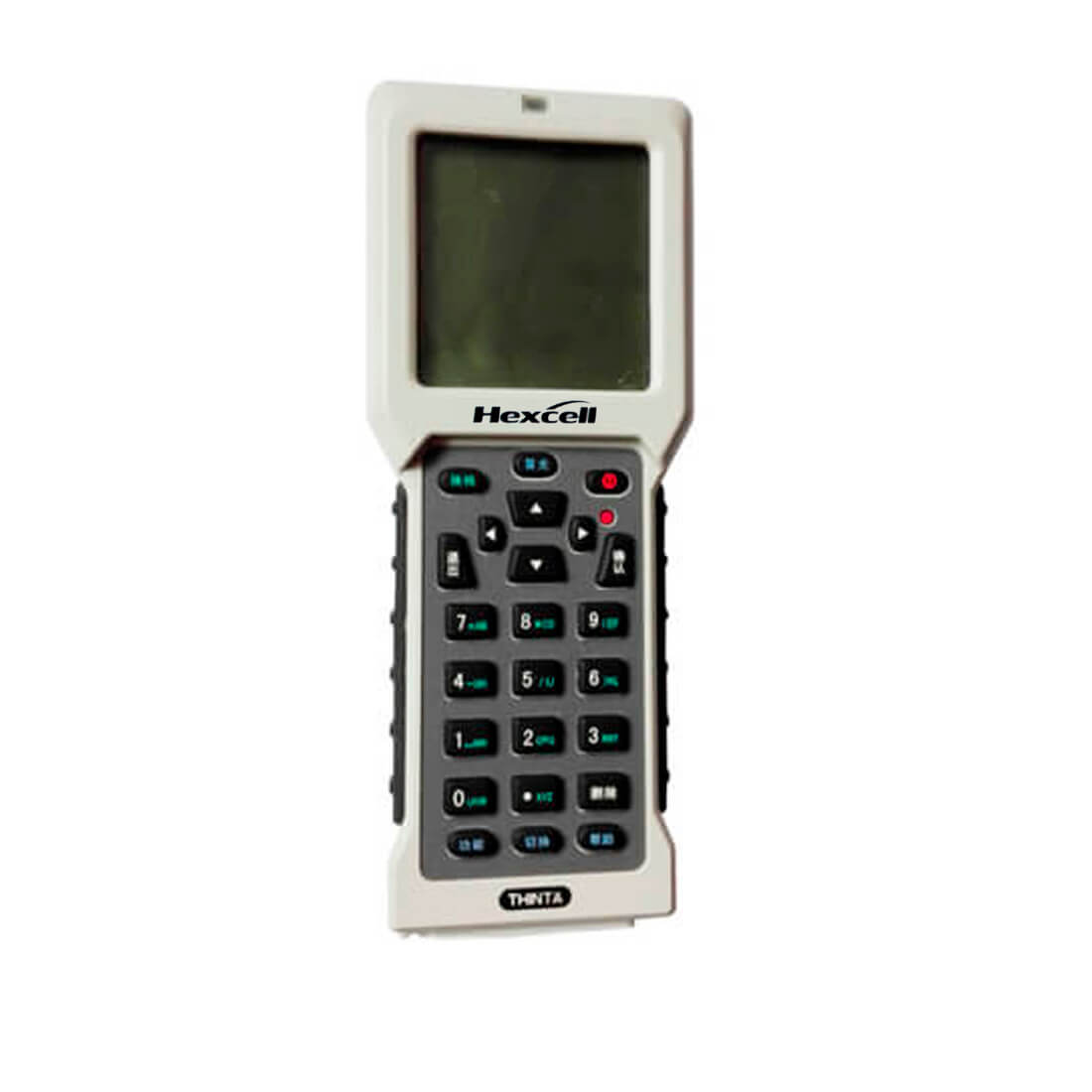

Hexcell900 Hand Held Unit(HHU)

Description
HEXCELL900 HAND HELED UNIT (HHU)

DESCRIPTION

HEXCELL900 Hand Held Unit(HHU) can be compatible with Hexcell meter reading software that operates with DLMS/COSEM protocol. The HHU can communicate with any meter that conforms to DLMS UA. It provides a RS232 cable(TP800 L232) to communicate with PC, and a optical probe(TP-HHTP) to communicate with meter.

FUNCTION
1.Power on/Power off
2.Adjust contrast
3.Backlight
4.Battery charging
5.Hexcell meter management software


SPECIFICATION
CPU ARM7 32bit RISC
Memory RAM 512KB ,Flash ROM 2M-512M
Display 2.8 inch LCD ,160*160 dots ,20ASCII Characters 20 lines Back light and Contrast and adjustable by keypad
Keyboard 24-key keypad with nurmeric ,uppercase alphabetic ,and arithmetic operators entry capability.
Charging mode The built -in rechargeable function
Indicator light The top light have different colors in different conditions
Anti-slip function Anti-slip desined to make work more comfortable
Interface/communication USB1.1client 12MBPS,RS232,RS485
Power Battery -AAA Size or rechargeable lithium battery Idle last-100hours(standby)
Environment Operating temperature-20℃-60℃ operating humidity -5%-95%(no condensation)
Drop 1.2m to concrete
Dimensions 166mm(L)*66mm(W)*28mm(D)
Weight 160g(not including batteries)
Operating System TPOS embaded operating system
Developing tools C Language
