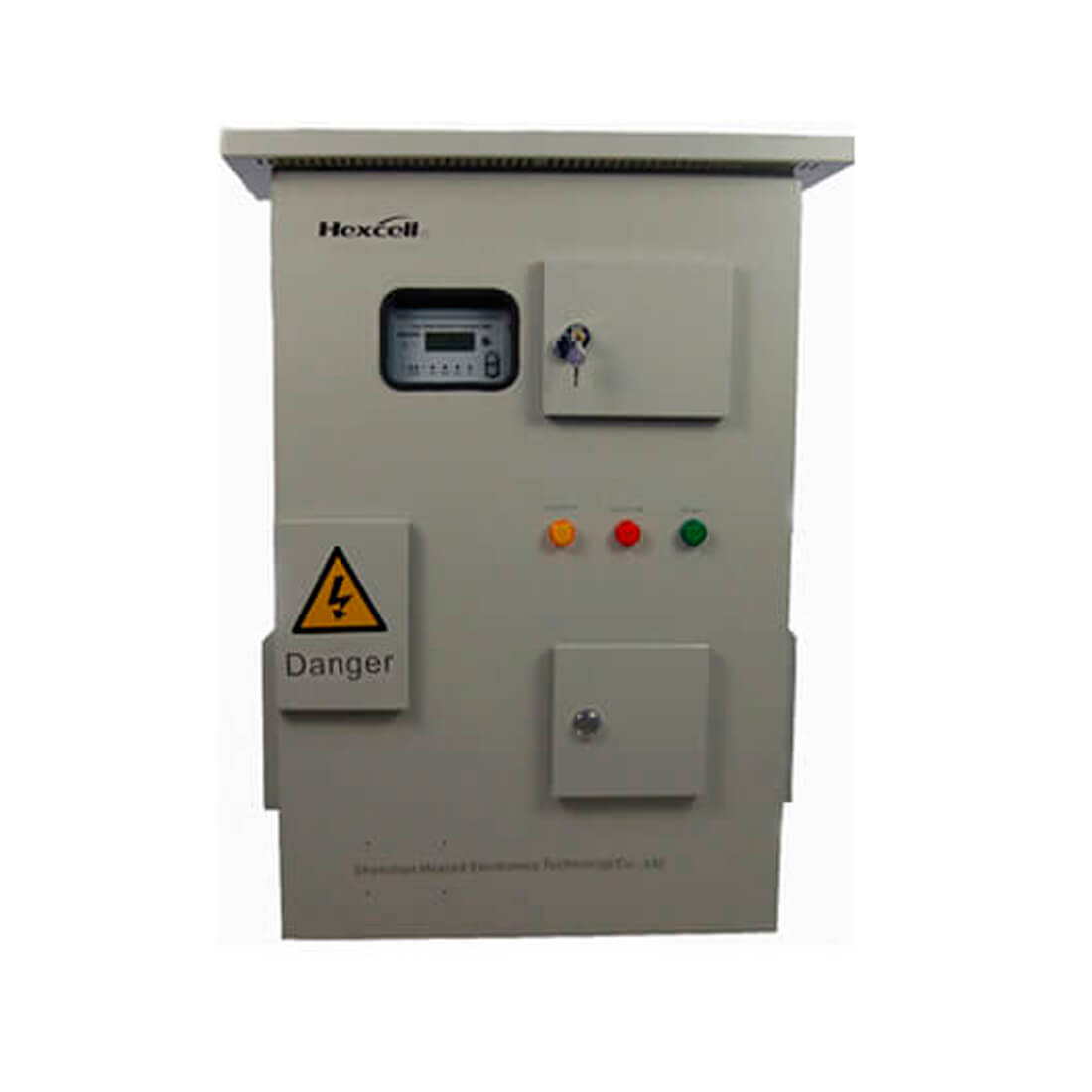

Smart Prepaid Meter Cubicle HEX1090

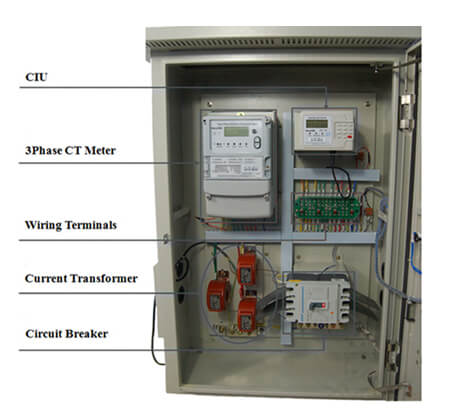

One solution cubicle is consisted of steel cabinet, three phase CT meter with CIU, current transformer, circuit breaker and wiring terminals.

1.Dustrial & commercial three-phase prepayment meter with CT
2.Local communication via Optical or RS232/485
3.Remote communication via GPRS

1.High quality steel with sprayed plastic coating for durability.
2.Hinged lockable door with sealing provisions .
3.Equipped with 3-phase CT circuit breaker controlled by meter .
4.Clear polycarbonate window with weatherproof rubber gasket lining .

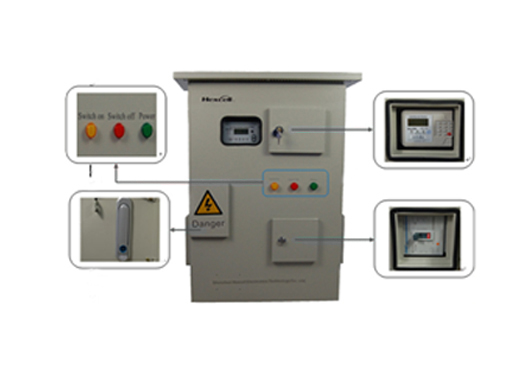

5.Three large colored lights to indicate power & switch status .
6.Lockable & sealable front window for recharging and status checking.
7.Lockable & sealable bottom window for MCCB switch .
8.STS standard compliant prepayment features.
STS recharging token entry via keyboard or contactless smart card .
10.Option of GPRS & internal antenna for AMR meters .
11.Switch spanner
attached inside the switch window w/ instructions .
12.Grounding bolts for earthing panel with stranded cooper.
13.Cable entry & exit holes fitted with PVC cable glands .

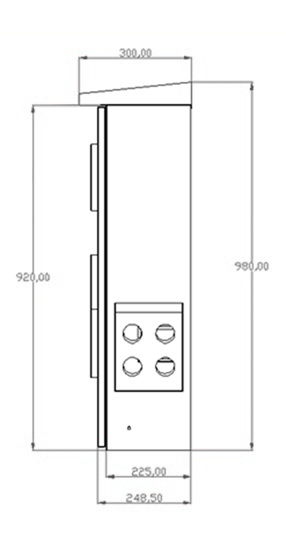

External Dimensions 980mm x 730mm x 300mm
Temperature Range -25 °C ~ +75 °C
Ingress Protection / Insulation IP53, IEC 529, Protective Class II
Casing Material Coated sheet steel
Window Material High quality clear Polycarbonate
Circuit Breaker 90mm x 120mm
CT Current Rating 63A, 125A, 250A, 300A,630A, 800A, 1250A
CT Current Rating 200A, 300A, 400A, 500A, 600A, 800A, 1000A
Voltage Rating 3x 230/400V

1.Enable prepayment metering solution for large power customers .
2.Suitable for outdoor installations with air vent and rain shield .
3.High quality sheet steel with anti-corrosion coating for durability .
4.Clear polycarbonate window for visual reading and check .
5.Wide operation temperature range suitable for all temperature regions, including tropical areas.
6.Integrated CT and high quality MCCB in one box .
7.Support meters with GPRS communication option and antenna .
8.Multiple sealing provisions for high-security .
9.Large colored LED lights to indicate account & switch status .
