Product Description：
The concentrator uses advanced measurement technology to ensure the accuracy and reliability of the data. Through wireless 4G/2G communication, the collected data is remotely transmitted to the management platform to a chieve remote monitoring and management. RF/RS485 meter collector, through RF wireless or RS485 wired communication mode to connect with the meter, according to the communication protocol supported by the meter, accurate real-time reading from the meter of various data, including cumulative electricity consumption (active power, reactive power), real-time voltage, real-time current, power factor and other information; It can copy the remote data of electric meter, reduce the errors that may occur in manual meter reading, and greatly improve the efficiency and real-time of data collection. It plays a key role in power data monitoring and management systems.
Technical Specification：
| Voltage range |
100~300 VAC |
| Communication method |
Uplink: 4G\Ethernet Downlink: RF/RS485 Local: Infrared |
| Temperature range |
-40℃~70℃ |
| Humidity range |
Annual average =75%; maximum =95% |
| Life span |
More than 10 years |
| Protection level |
Ip54 |
| Installation method |
BS installation method |
| Dimensions (mm) |
98*146*53.5mm |
| Communication protocol |
DLT 645-2007,Q/GDW 1376-2013 |
| Frequency range |
50Hz±5%/60Hz±5% |
| Power consumption |
Power consumption of voltage circuit ≤2W 5VA |
| |
Power consumption of current circuit ≤2VA |
| LoRa |
Working frequency band: 433~510MHZ(Frequency bands can be customized upon request) |
| |
Modulation mode: LoRa\GFSK\FSK etc. |
| |
Receive sensitivity:-129dBm±1dBm(SF=9,BW_L=125KHz) |
| |
Transmit power: Max.22dBm |
| |
Communication distance:500m (@SF=9, BW=125KHz, no visual obstacles, LoRa modulation,maximum transmission power) |
| RS485 |
RS485 supply voltage: 4.8V-5.2V (current 5-50mA) |
| |
Baud rate:2400bps |
Function Features:
| Data collection |
R ead water meters by sending transparent commands from the system, supporting single meter reading and multi-meter reading.
Automatically collect water meter data at regular intervals, and store water meter data collected for more than 3 days |
| Meter file management |
Function of sending water meter files through transparent transmission command.Function of querying water meter file information |
| Clock function |
Daily timing error =0.5S (optional) |
| Remote data transmission |
Remote interaction and communication with the main station are achieved through the 4G network, and water meter data is reported through data forwarding (communication conversion) |
| Local function |
DCU running status indicator, key query |

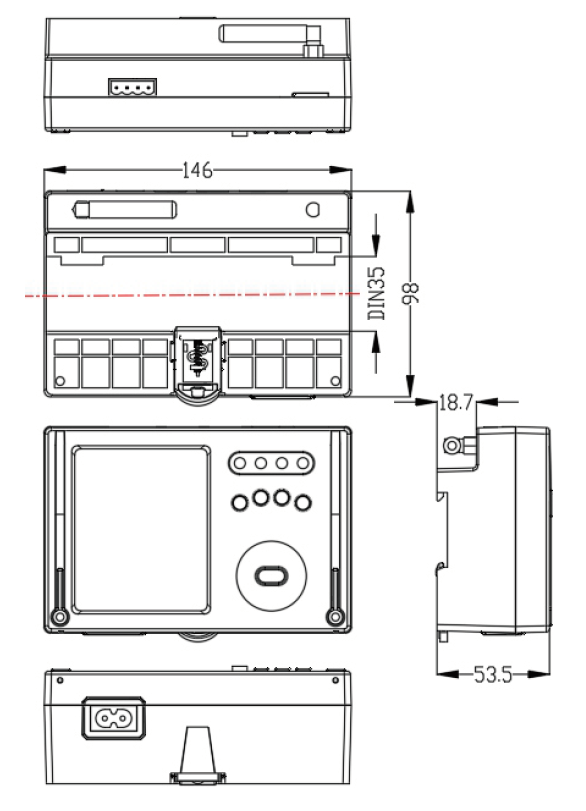

Installation Dimension:
