4 POSITIONS CONTROLLER BOX 1.External View
2.Component name

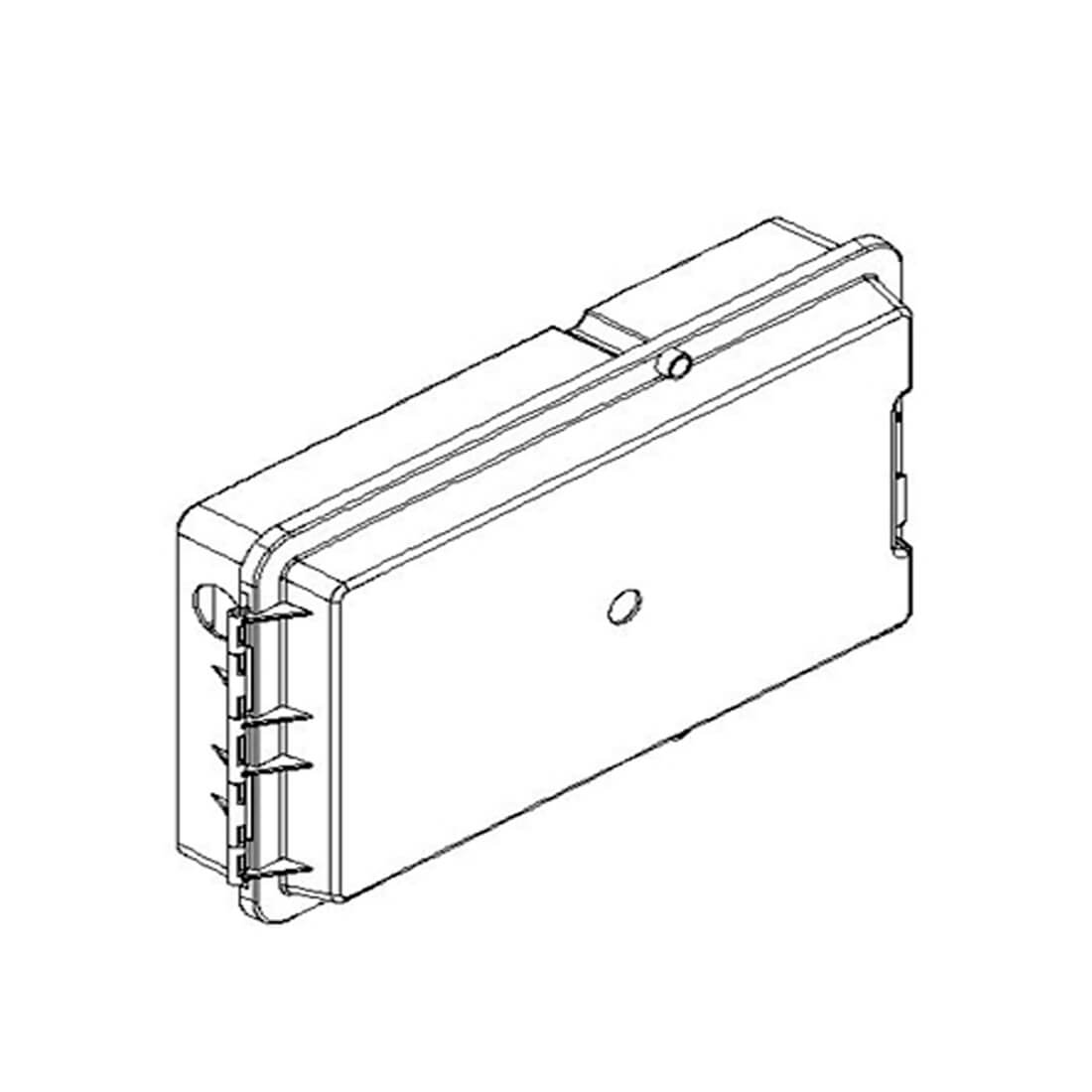

3.Installation Drawing
4.Features
A.4 Positions space available for 4 controllers.
B.Insulation, no conductor exposure ,all firmware inside box are protected .World-class raw materials, double layers design. Waterproof IP54.
C.Meter cover adopts environmental protection engineering plastic, transparent polycarbonate(PC),box base PC+ABS。Ultraviolet resistance, ageing resistance, acid resistance, salt fog resistance, high temperature resistance, low temperature resistance, shock resistance etc.
D.Box cover 180 degrees open through active hinge.
E.Wall type cabinet design, installed on the wall.
8 POSITIONS CONTROLLER BOX 1.External View
2.Component name
3.Installation Drawing
4.Features
A.8 Positions space available for 8 controllers.
B.Insulation, no conductor exposure ,all firmware inside box are protected .World-class raw materials, double layers design. Waterproof IP54.
C.Meter cover adopts environmental protection engineering plastic, transparent polycarbonate(PC),box base PC+ABS。Ultraviolet resistance, ageing resistance, acid resistance, salt fog resistance, high temperature resistance, low temperature resistance, shock resistance etc.
D.Box cover 180 degrees open through active hinge.
E.Wall type cabinet design, installed on the wall.
