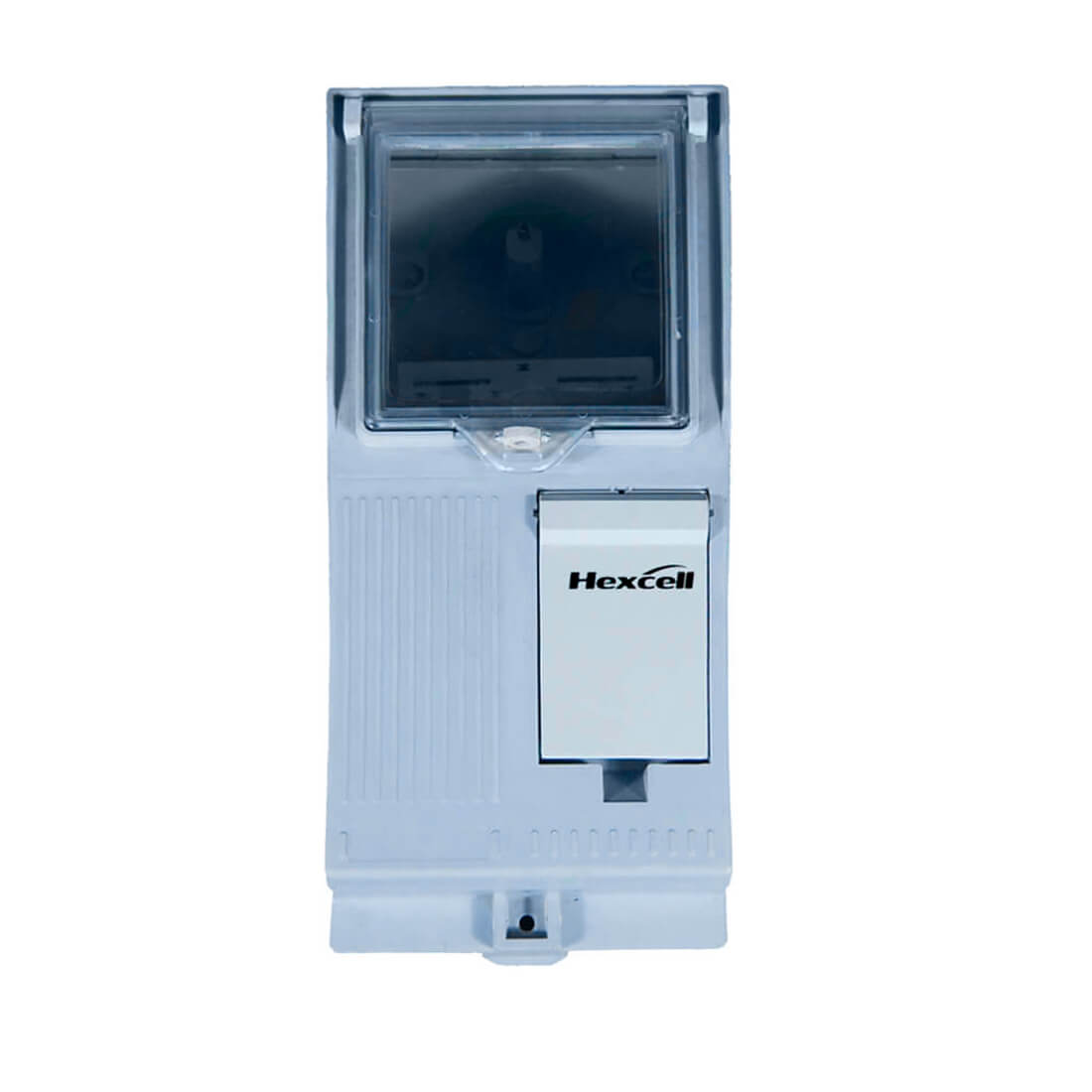

DESCRIPTION The single-phase french electronic watch case is derived from the French meter box design concept. The main body of the watch box is made of FRP, PC, ABS, etc. It has the advantages of fireproof, anti-drop and anti-ultraviolet radiation. It is especially suitable for countries and regions with strong light and hot climate.
CONSTRUCTION AND USE 1.The meter box is used to install electronic energy meters, circuit breakers and fuses.
2.The transparent part of the upper part of the watch case can be opened to close the meter, so that the meter user can operate the meter. The opaque active window at the lower end of the watch box is the circuit breaker operating area, which is convenient for the user to open and close the brake.
3.The upper part of the inside of the meter box is the electric meter installation area, and the lower left side is the fuse installation area.
4.The bottom of the case is equipped with a triangular seal screw, which is convenient for the management and operation of the user's watch box.

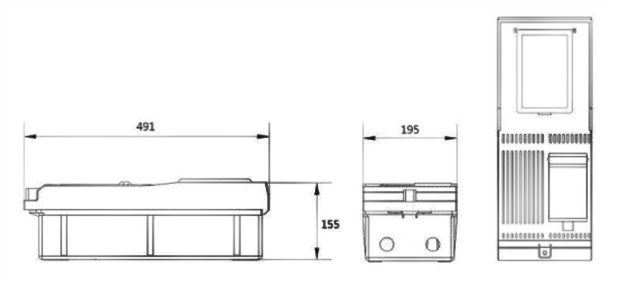

SPECIFICATIONS AND DIMENSIONS USE This watch case is suitable for indoor and outdoor, waterproof, anti-corrosion, strong hardness and anti-aging.
INSTALLATION METHOD 1.Wall mounting: Each corner is fixed to the wall by screw holes and four corners of the fixed box with expansion tubes and screws. It is also possible to fix the hole at the upper end of the back of the case and hang it on the wall.
2.Wiring pole installation: Insert a fixing strap on the upper and lower parts of the case and fix the binding on the pole.
