Product Description：

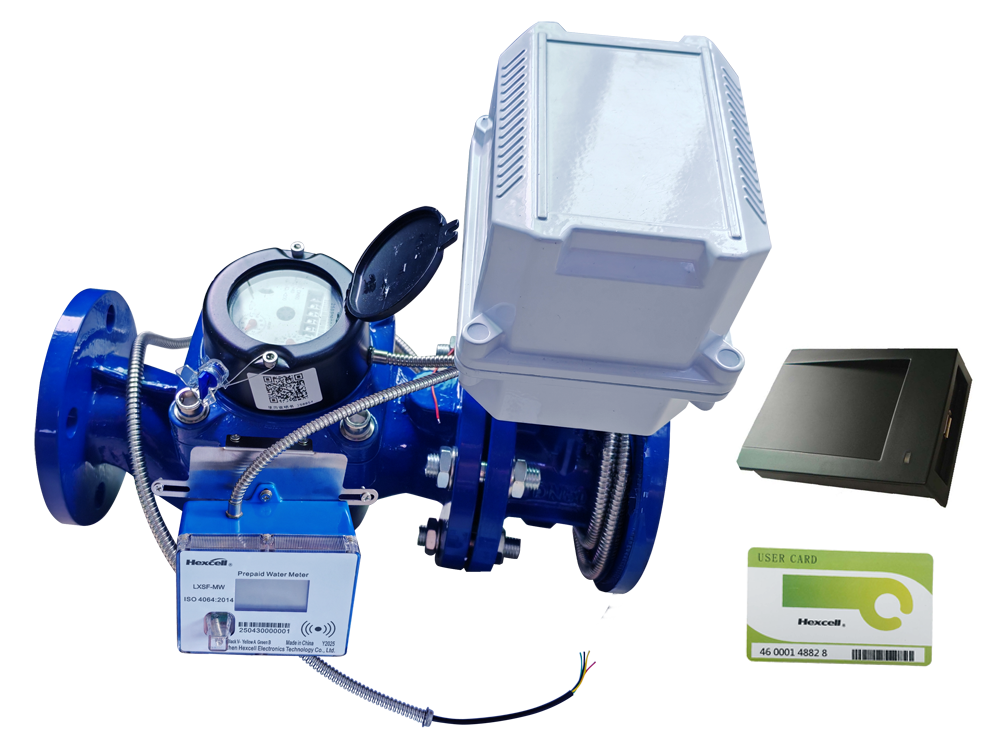

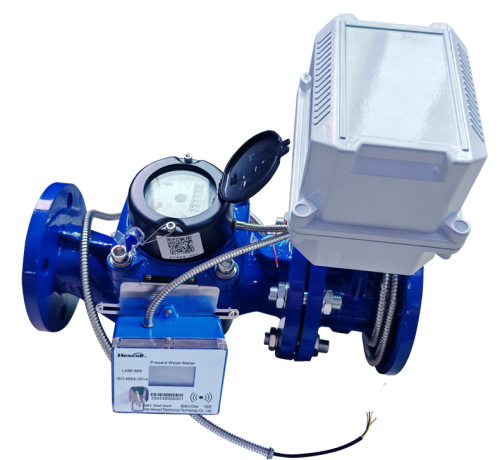

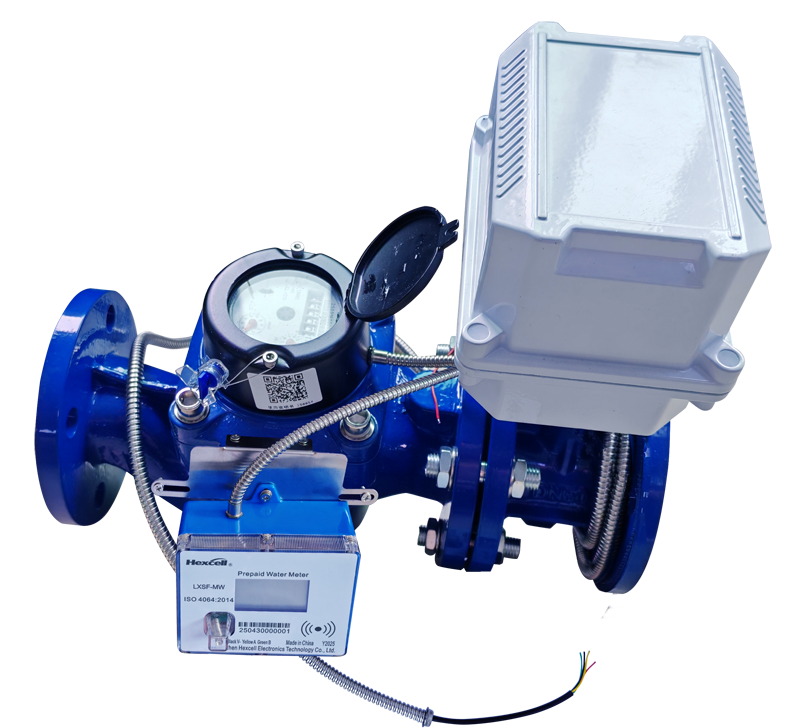

This product is a vertical spiral-wing type large-diameter water meter.It is suitable for water measurement in scenarios with relatively stable flow, such as factories, mines, and water supply trunk lines. It realizes water volume measurement, water volume reporting, abnormal reporting, valve control, etc., and can achieve the prepaid function of "pre-purchase and then use" for users through the water sale system. It can flexibly preset various functions: remote recharge, valve closing, valve opening, reset, and theft water clearing, etc. Prepaid and postpaid can be switched. Information transmission between users and the computer of the power supply department is realized through media such as IC cards, 2G/4G, LoRa, and RS485, thus meeting the modern scientific management requirements of the water supply department for users to be effective and timely.
Technical Specification：
| Accuracy class |
Class 1/class 2 |
| Environmental class |
Class B |
| Temperature rating |
T50/T90 |
| Pressure rating |
MAP10/MAP16 |
| Pressure loss |
△p63 |
| Sensitivity level of upstream flow |
U0 |
| Sensitivity level of downstream flow |
D0 |
| Water display type |
Register/LCD |
| Installation method |
Horizontal |
| Meter body material |
Ductile Cast Iron |
| Protection class（IP） |
IP68 |
| Communication method |
UPlink:2G/4G,RS485 Downlink:LoRa,IC,NFC |
| Valve |
External butterfly valve/No valve(postpaid) |
| Dial |
Dry dial |
| Velocity-type |
Multi-jet |
| Standards |
GB/T778-2018、JJF1777-2019、CJ/T224-2012、ISO4064:2014、IEC62055-31、IEC62055-41 |
| Certificate |
ISO9001、STS |
| MOQ |
1000pcs |
| Delivery time |
30 days |
| Application |
Residential communities, urban residences, hotels, schools, hospitals, shopping malls, factories, water companies |
Function Features:
| Prepayment |
Support prepayment function, prepaid and postpaid can be switched, low credit alarm |
| Remote control |
Remote recharge, close valve, open valve, clear credit, clean tamper |
| Metering and Storage |
Metering forward water and store freeze data for the last 12 months |
| Early warning function |
Battery under voltage, magnetic interference, purchased credit and prepayment usage reach the threshold |
| Event record function |
Event storage functions,such as the last recharge record |
| Ladder water price |
Can set different benchmark price and ladder price according to the user type and consumption |

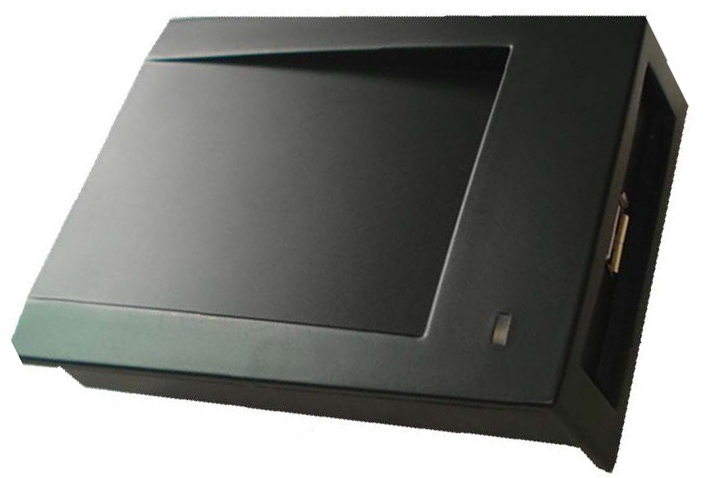

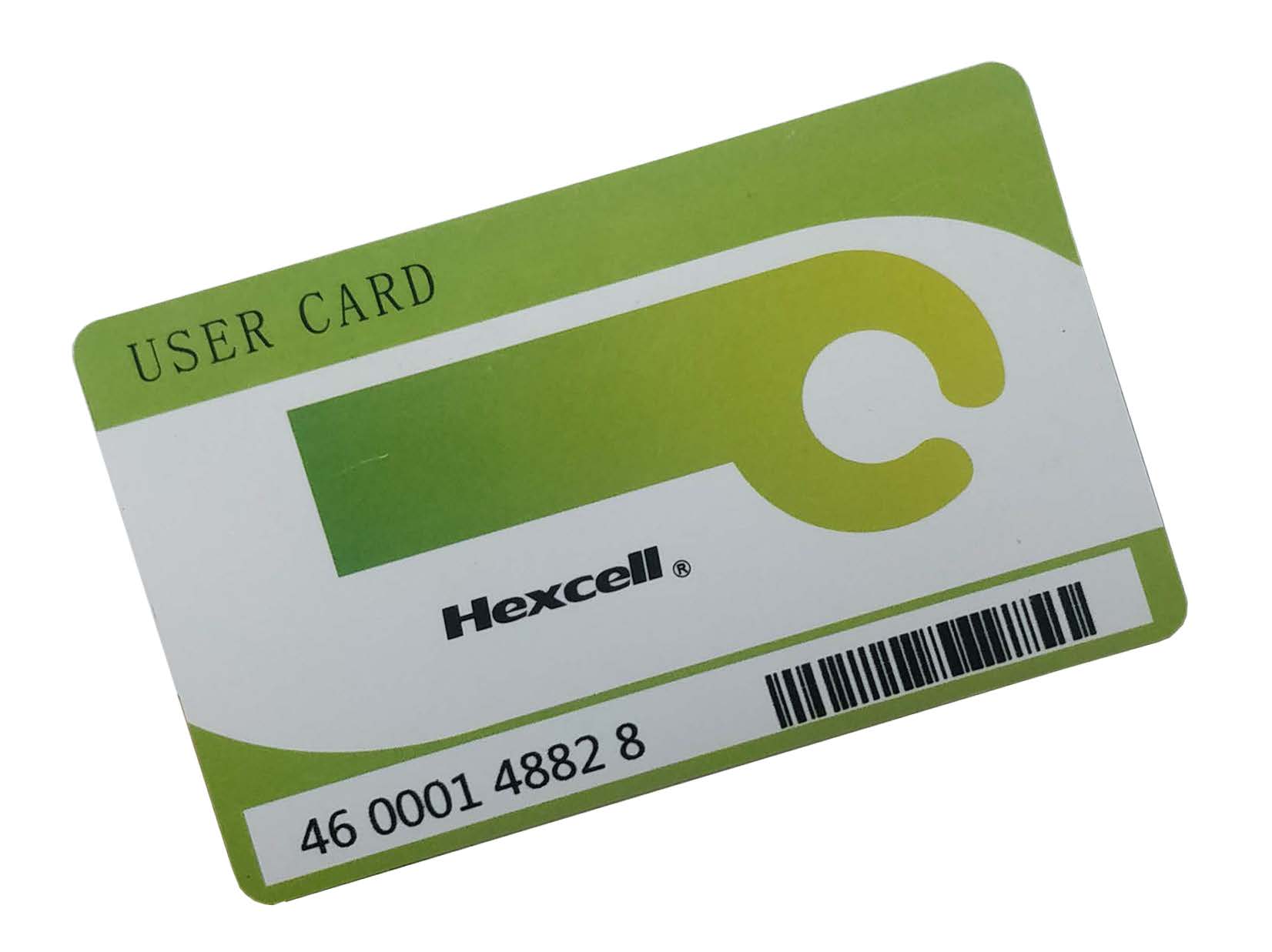

| Radio frequency card |
Meter reading, meter configuration, recharge, close valve, open valve, clean tamper |
| Prepaid/Postpaid |
Optional |

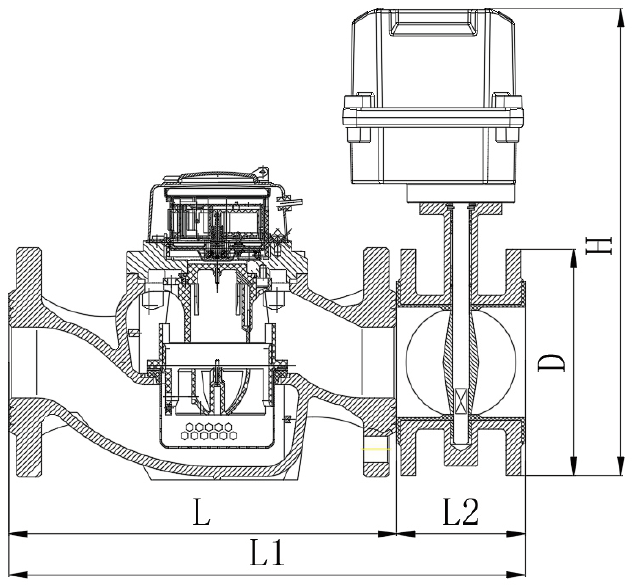

Installation Dimension:
