Product Description：
Traditional single-phase electricity meters suffer from limited accuracy, restricted communication options, and a lack of real-time data, often leading to billing disputes and high O&M costs while making it difficult for users to effectively monitor and conserve electricity.

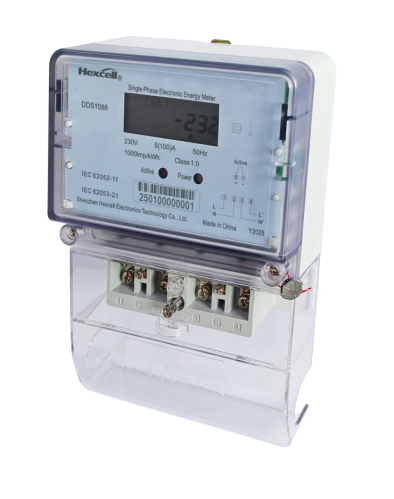

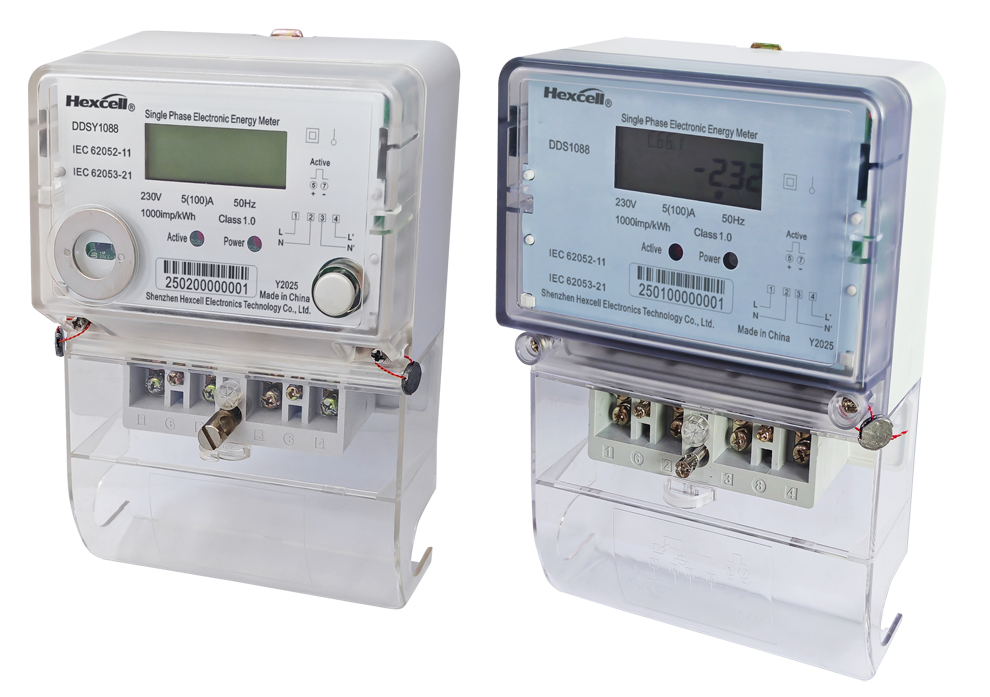

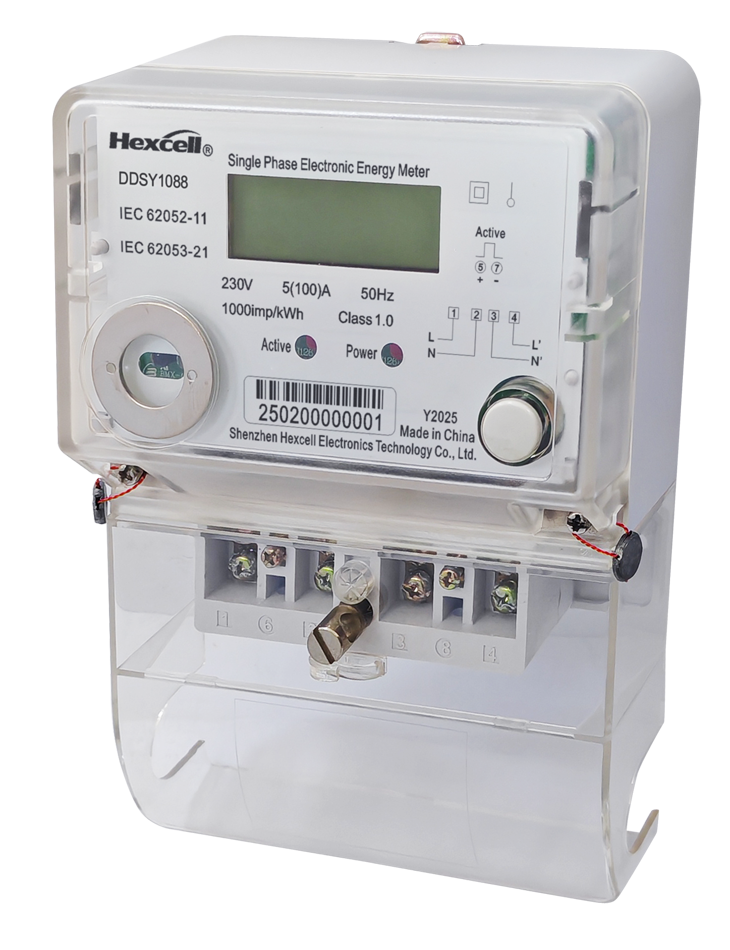

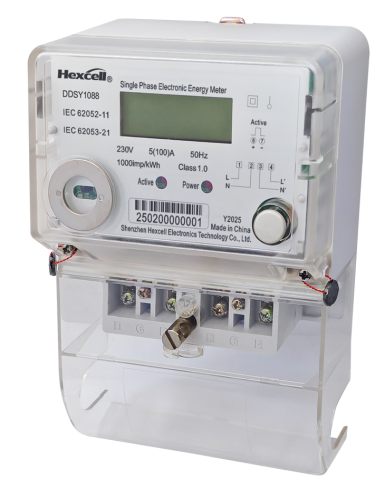

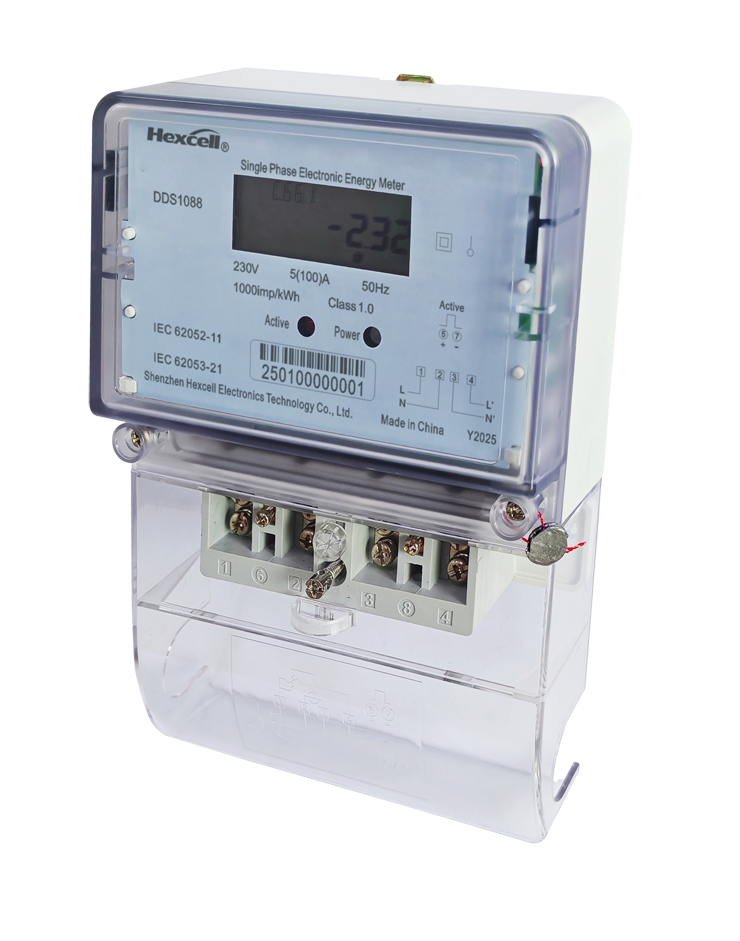

The Hexcell DDS1088/DDSY1088 utilizes advanced SMT technology and supports RS485, IEC62056-21 optical ports, and LoRa connectivity. It enables remote data transmission and real-time electricity usage monitoring, helping users manage consumption, reduce costs, and support energy conservation and emission reduction.
It features Class 1 active and Class 2 reactive energy accuracy, a wide voltage and current operating range, and IP51/IP54 protection. It holds comprehensive certifications (IEC, ISO9001, STS, KEMA, DLMS), offers a service life exceeding 10 years, and supports optional 12-month data storage and multi-tariff capabilities. Its performance has been proven in residential, commercial, and photovoltaic applications.
Technical Specification：
| Mode |
Single-phase two wire, single-phase three wire |
| Raged Voltage(Un) |
120V、220V、230V、240V |
| Operating Voltage |
Un≥220V 40%～120%Un Un≤120V 80%～120%Un |
| Starting Current |
0.002Ib/0.004Ib |
| Basic Current(Ib) |
5A、10A |
| Maximum Current (Imax) |
60A、80A、100A |
| Accuracy |
Active：Class 1；Reactive：Class 2 |
| Frequency |
50Hz、60Hz |
| Communication |
IR,RS485,LoRa |
| Power Consumption |
Voltage circuit: ≤1.5W 5VA Current circuit: ≤2VA |
| Operating Temperature |
-40℃～75℃ |
| Humidity |
Annual average≤75％；Max≤95％ |
| Protocol |
IEC62056-21Mode C/ DLMS |
| Display |
LCD |
| Lifetime |
>10 years |
| Protection Level |
IP51、IP54 |
| Installation |
BS type |
| Dimensions(mm) |
175*130*60 or 195*130*60 |
| Daily timing error |
≤0.5s/d(21℃～25℃) |
| Connection |
LLNN/LNNL |
| Neutral Measurement |
Optional |
| Standards |
IEC62052-11、IEC62053-21、IEC62053-23 |
| Certificate |
ISO9001、STS、KEMA、DLMS |
| MOQ |
1000pcs |
| Delivery time |
30 days |
| Application |
Residential communities, apartments, factories, shopping malls, office buildings, hotels, photovoltaic power stations |
Function Features:
| Structure |
The upper cover is ultrasonic fixed to the base |
| Metering and Storage |
Measuring total active power and total reactive power
Optional: Store power for 12 months and support multi-rate metering |
| Measurement |
Measure and read voltage, current, active power, reactive power, etc |
| Event Record |
Optional:Open record |

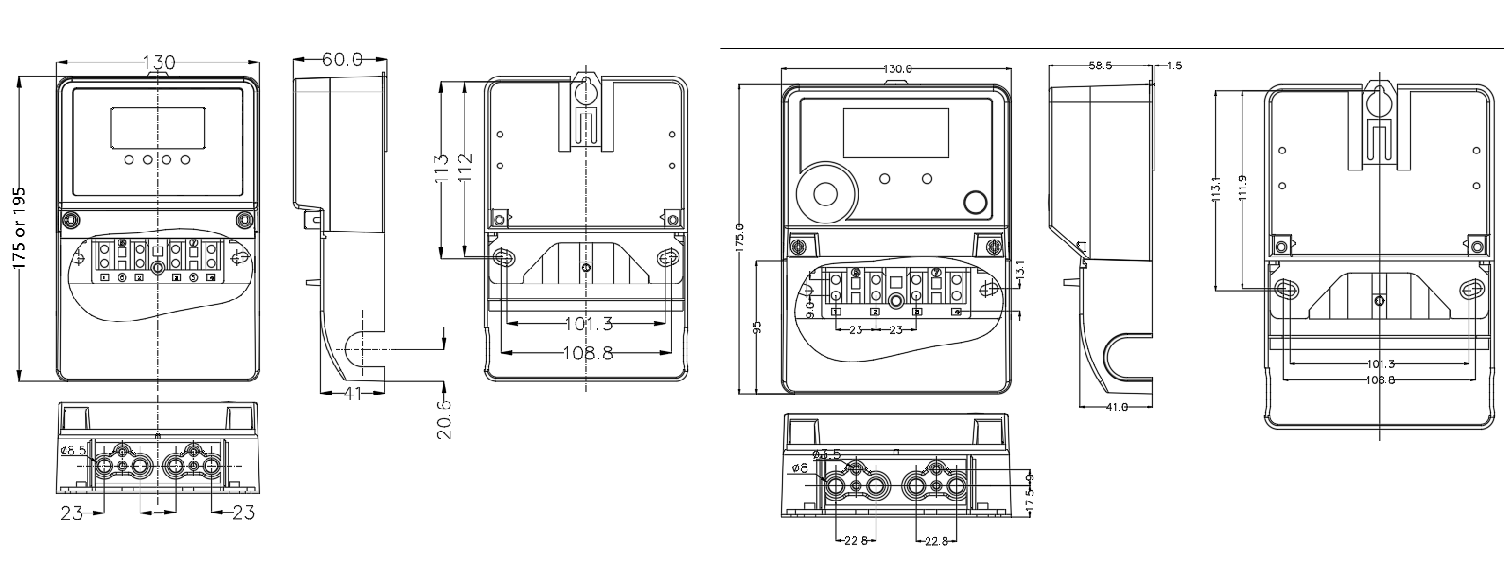

Installation Dimension:
