Product Description：
Electricity utilities often face challenges with traditional postpaid metering, including delayed payment collection, manual meter reading, limited control over electricity consumption, and difficulty managing different tariff structures. These challenges can increase operational costs and make electricity revenue management more difficult.

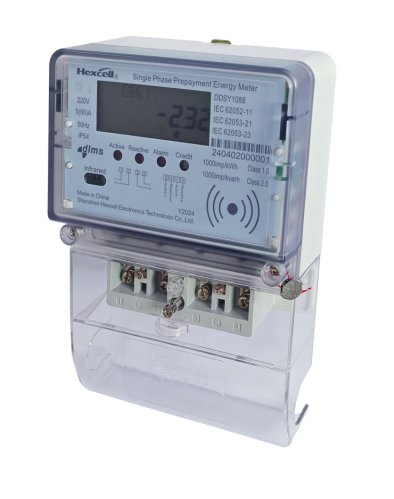

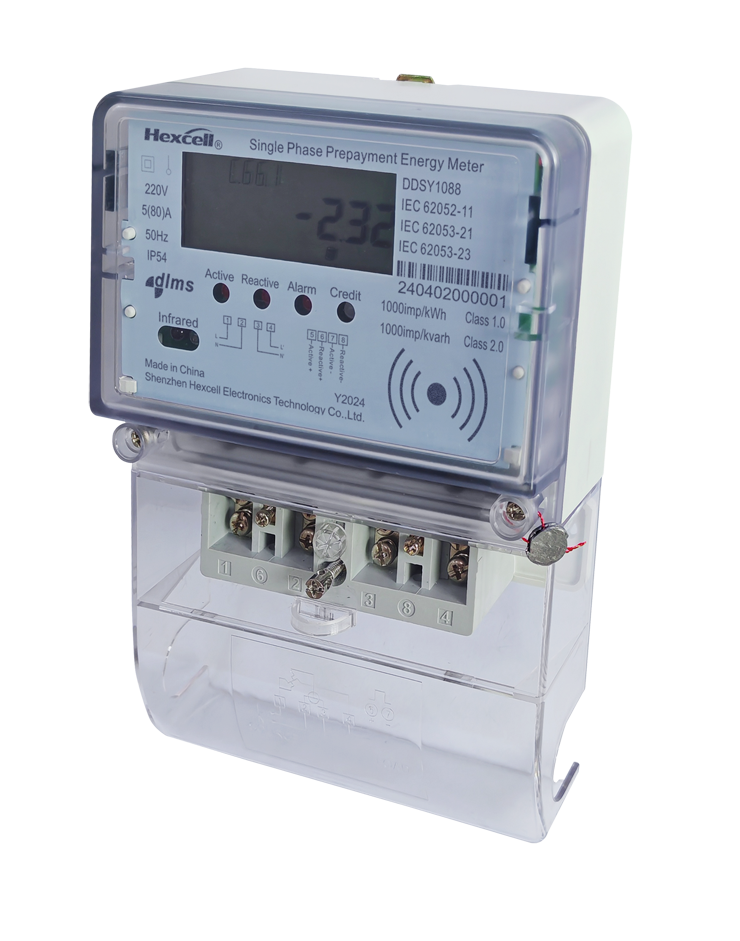

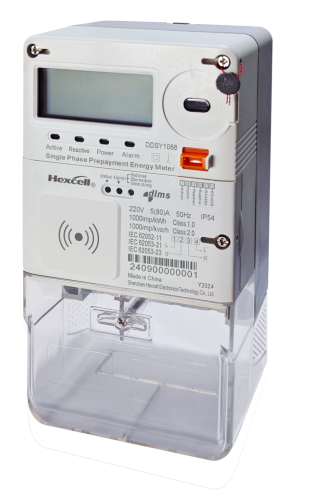

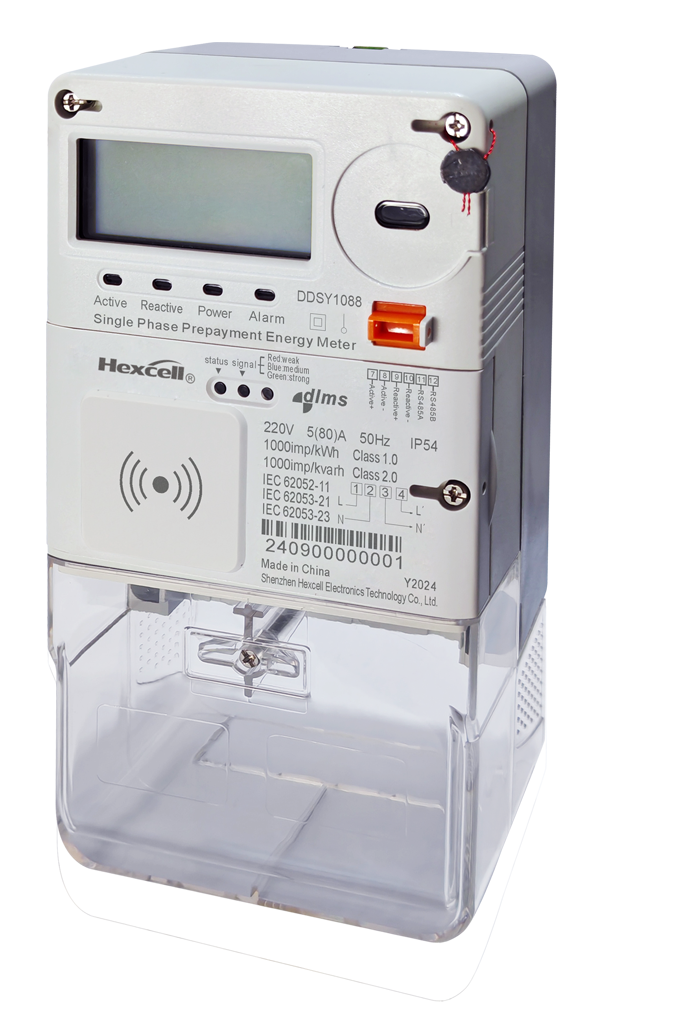

The Hexcell DDSY1088/DDS1088 is a single-phase RF card prepaid/postpaid energy meter designed for residential and commercial electricity metering applications. It supports the “pay first, use electricity later” model, allowing utilities to collect electricity payments before energy consumption and helping reduce payment collection risks.

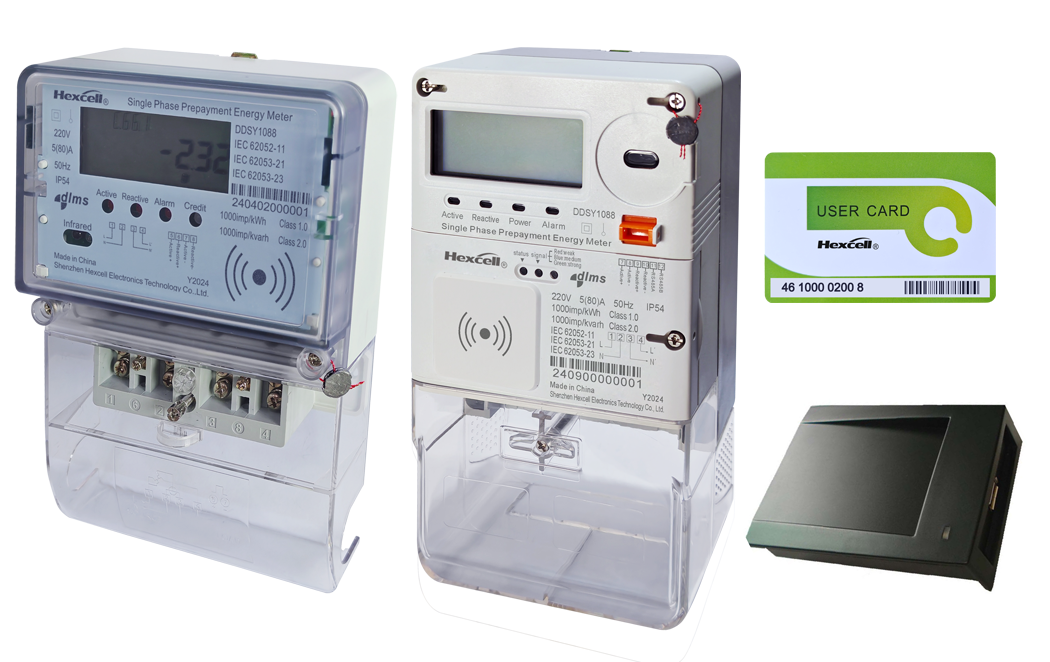

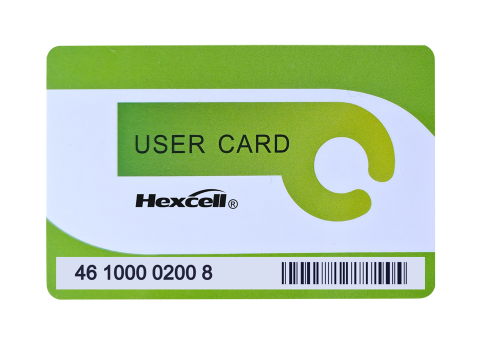

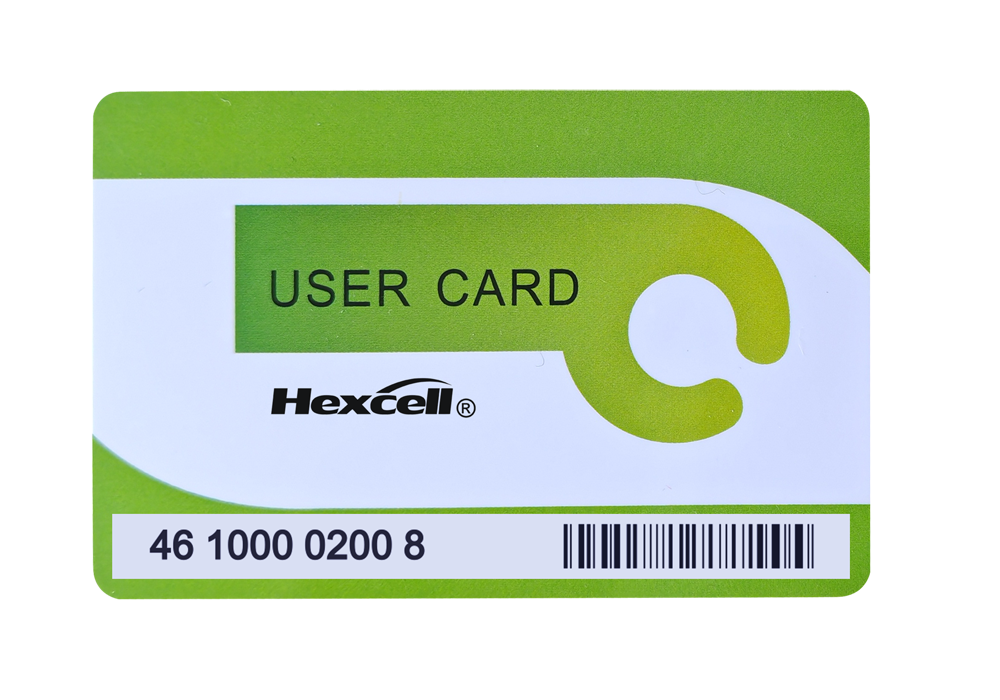

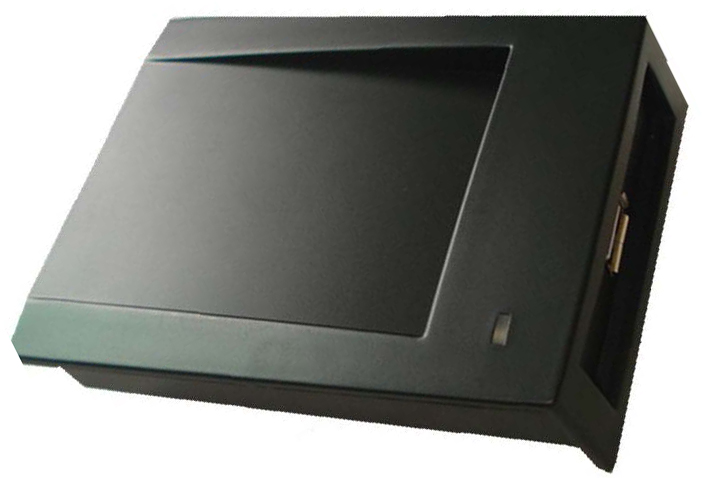

Users can recharge electricity through an RF card, while utilities can also use remote meter reading systems for data collection and management. The meter supports flexible tariff management, including multi-tariff and tiered electricity pricing, making it suitable for different electricity pricing policies.
The meter can communicate with an AMI system through interfaces and communication technologies such as RS485 and LoRa, while additional communication options include IR, PLC, 2G/4G and LoRaWAN. This enables remote energy data collection, meter management and electricity consumption monitoring.
The meter also provides configurable control and monitoring functions, including recharge management, arrears switch-off, automatic switch-off, freezing of electricity consumption data, fault/event recording and automatic meter reading.
The DDSY1088/DDS1088 supports:
- Prepaid and postpaid operating modes
- RF card electricity recharge
- Remote meter reading
- RS485 and LoRa communication with AMI systems
- Multi-tariff and tiered electricity pricing
- Forward/reverse active and reactive energy measurement
- 12-month energy data storage
- Event recording for recharge, switch-on/off, cover opening, power failure, reverse energy, overvoltage and undervoltage
- IEC 62056-21 Mode C / DLMS communication protocol
- IEC 62052-11, IEC 62053-21, IEC 62053-23, IEC 62055-31 and IEC 62055-41 standards
- STS, KEMA and DLMS-related certification information
- More than 10 years' expected service life
Application
The DDSY1088/DDS1088 single-phase RF card prepaid/postpaid energy meter is designed for:
- Residential communities
- Apartments
- Factories
- Shopping malls
- Office buildings
- Hotels
- Photovoltaic power stations
Its combination of prepaid/postpaid metering, RF card recharge, multi-tariff management, event recording and AMI communication makes it suitable for electricity utilities and energy management projects requiring flexible billing and remote meter data collection
Technical Specification：
| Mode |
Single-phase two wire, single-phase three wire |
| Raged Voltage(Un) |
120V、220V、230V、240V |
| Operating Voltage |
Un≥220V 40%～120%Un Un≤120V 80%～120%Un |
| Starting Current |
0.002Ib/0.004Ib |
| Basic Current(Ib) |
5A、10A |
| Maximum Current (Imax) |
10A、60A、80A、100A |
| Accuracy |
Active：Class 1；Reactive：Class 2 |
| Frequency |
50Hz、60Hz |
| Communication |
IR, RS485, LoRa,PLC, 2G/4G,LoRaWAN |
| Power Consumption |
Voltage circuit: ≤1.5W 5VA Current circuit: ≤2VA |
| Operating Temperature |
-40℃～75℃ |
| Humidity |
Annual average≤75％；Max≤95％ |
| Protocol |
IEC62056-21Mode C/ DLMS |
| Display |
LCD |
| Lifetime |
>10 years |
| Protection Level |
IP54 |
| Installation |
BS type |
| Dimensions(mm) |
200*112*76.5/195*130*58.5 |
| Daily timing error |
≤0.5s/d(21℃～25℃) |
| Neutral Measurement |
Optional |
| Standards |
IEC62052-11、IEC62053-21、IEC62053-23、IEC62055-31、IEC62055-41 |
| Certificate |
ISO9001、STS、KEMA、DLMS |
| MOQ |
1000pcs |
| Delivery time |
30 days |
| Application |
Residential communities, apartments, factories, shopping malls, office buildings, hotels, photovoltaic power stations |
Function Features:
| Metering and Storage |
Measure forward/reverse active/reactive energy, store 12-month electric energy, and supports multi-tariff metering, total power consumption of last 12-month |
| Measurement |
Measure and read voltage, current, active power, reactive power, etc |
| Control Tariff |
Support card recharge, deducts fees according to tariff or tiered electricity prices, switch-off under arrears, switch mode between prepayment and postpayment. |
| Multiple Tariff |
Seasonal table, weekly table, daily periods, tariffs, tariff number, public holiday tariff, etc. |
| Event Record |
It can record events such as switch-on and switch-off, recharge, cover opening, power off, reverse, undervoltage, overvoltage, etc |
| Clock |
Daily timing error ≤ 0.5S (optional) |
| Friendly time |
No switch-off under arrears |

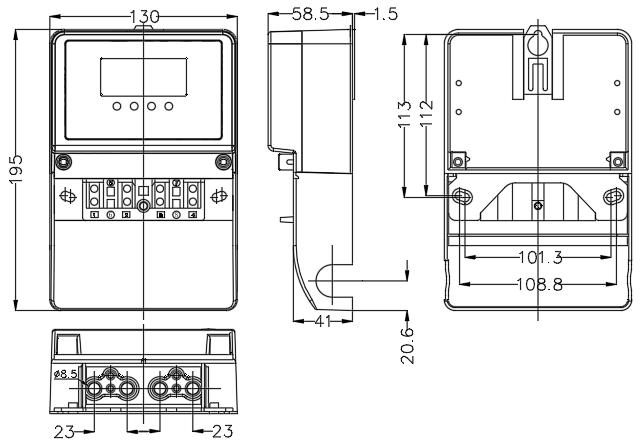

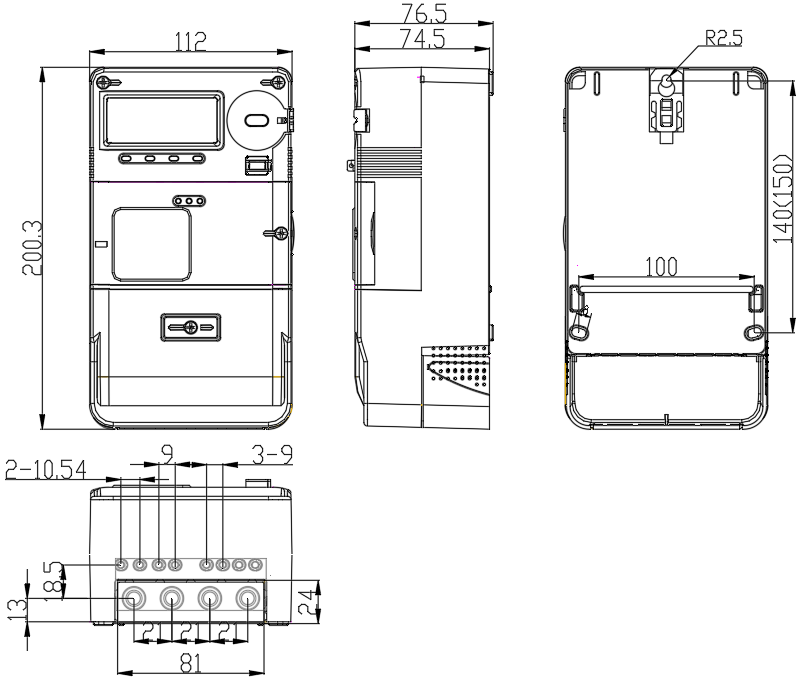

Installation Dimension:
