Product Description：
How can deploy ANSI-compliant meters that combine reliable energy measurement with flexible communication and convenient field maintenance? Modern power systems require meters that support accurate billing, real-time consumption visibility and seamless communication between utilities and end users.

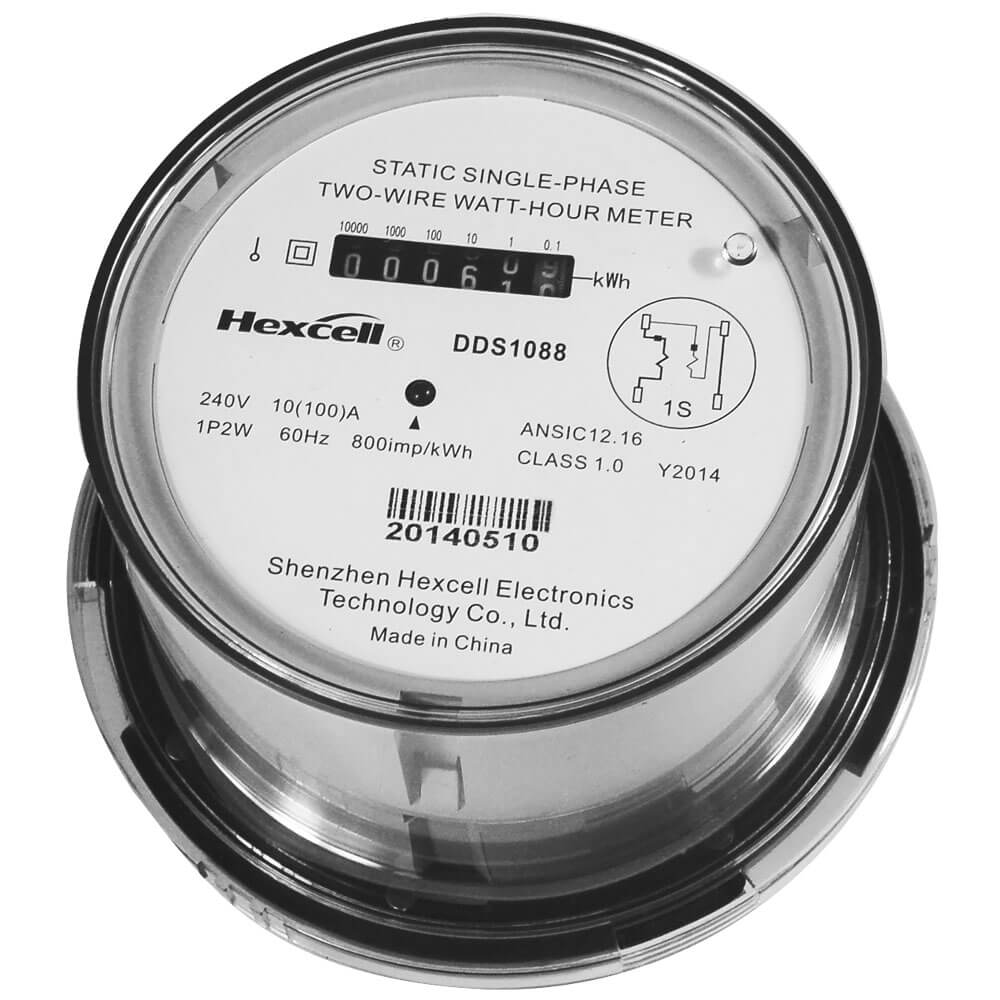

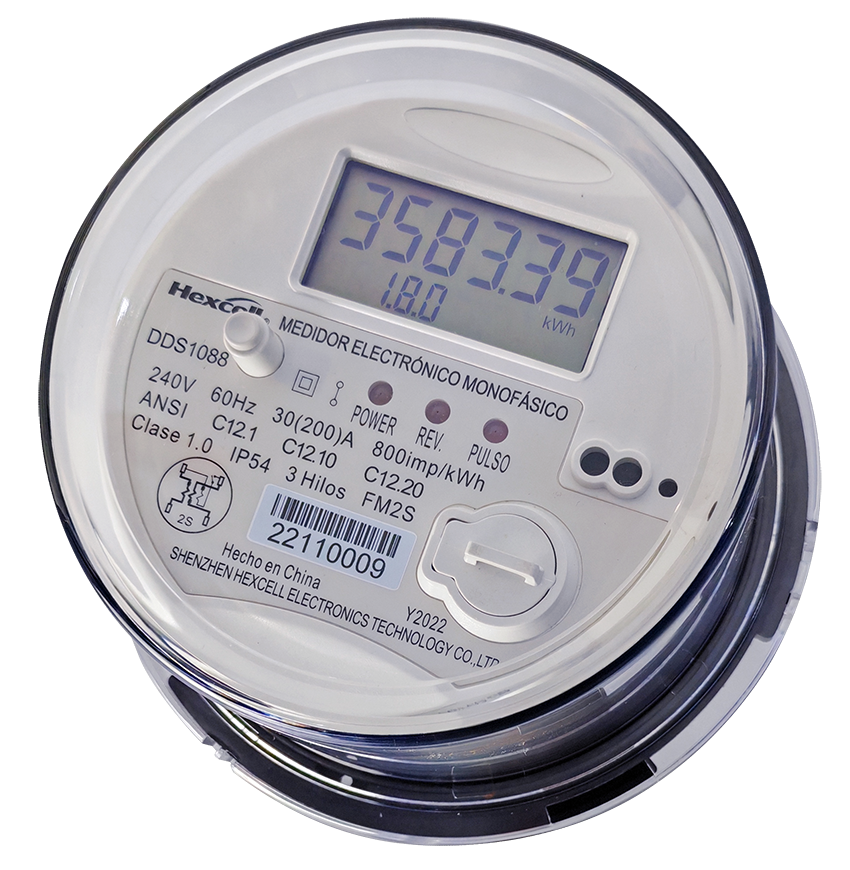

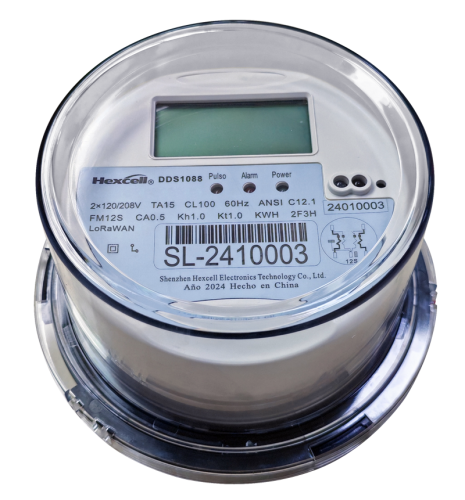

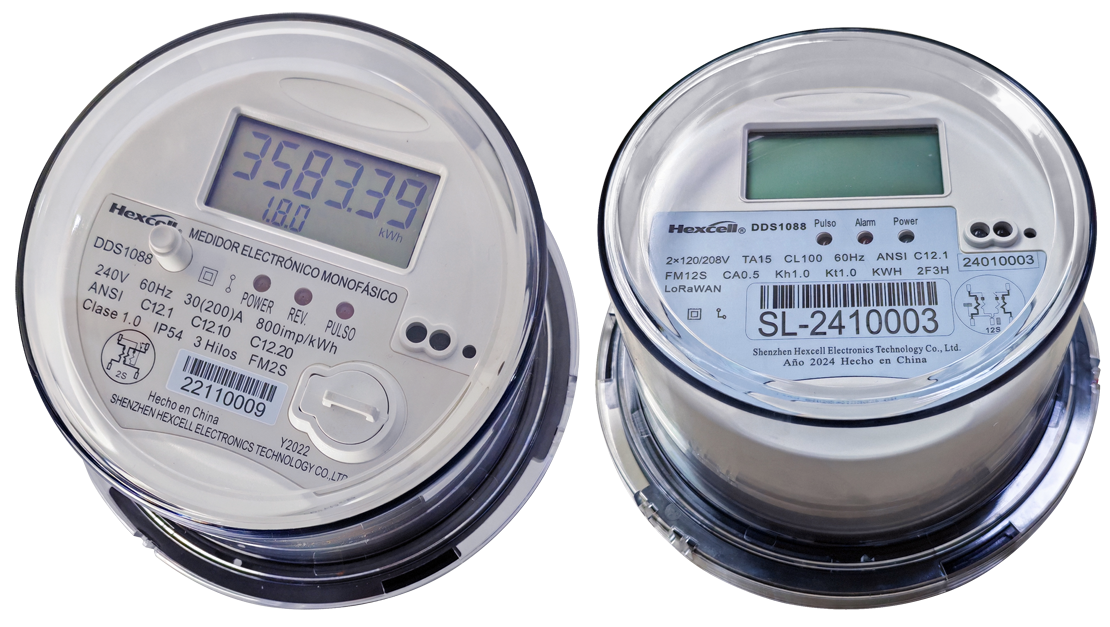

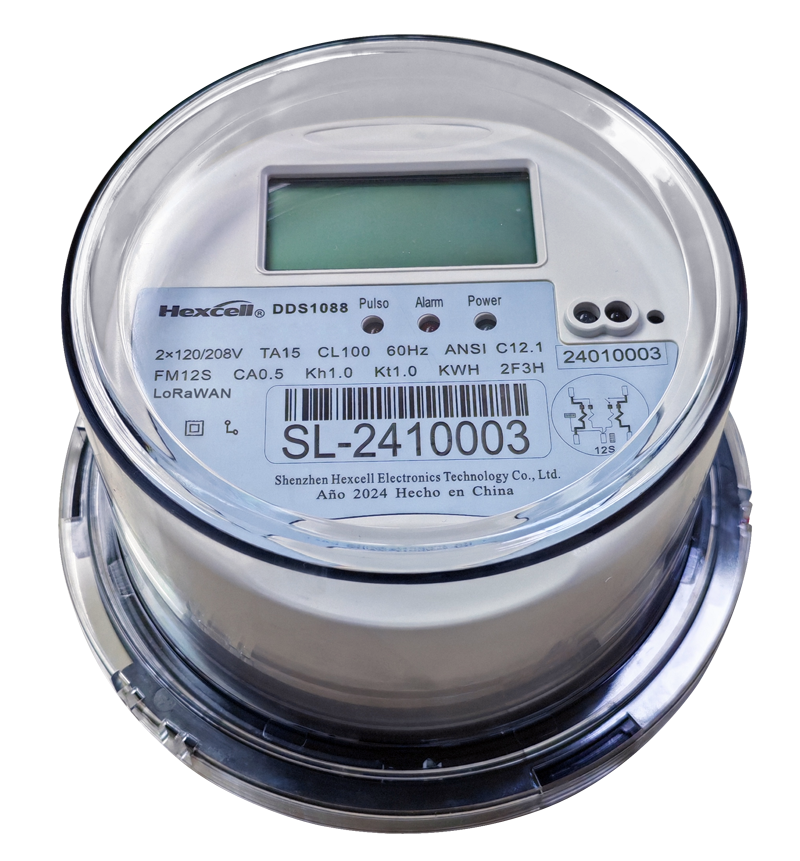

Hexcell ANSI Meter DDS1088/DSS1088 is designed for the North American market, combining ANSI-compliant metering with smart communication and flexible maintenance. It supports IR, RS485, LoRa, PLC and LoRaWAN communication, enabling remote data access, smarter billing and improved energy management. An optional replaceable battery also simplifies field maintenance and extends operational flexibility.
The DDS1088/DSS1088 is built to ANSI C12.1, C12.10, C12.18 and C12.20 standards, with proven support for precision metering, multi-rate measurement and long-term data storage. Its ANSI socket design, smart communication options and utility-oriented functions make it a scalable metering solution for residential, commercial, industrial and renewable-energy applications.
Technical Specification：
| Mode |
1S/2S/3S/4S/12S |
| Raged Voltage(Un) |
120V、240V、2*120V/208V |
| Operating Voltage |
80%～120%Un |
| Starting Current |
0.004Ib |
| Basic Current(Ib) |
15A、30A |
| Maximum Current (Imax) |
100A、200A |
| Accuracy |
Active：Class 0.5S、Class 1；Reactive：Class 2 |
| Frequency |
50Hz、60Hz |
| Communication |
IR,RS485,LoRa,PLC,LoraWAN |
| Power Consumption |
Voltage circuit: ≤1.5W 5VA Current circuit: ≤2VA |
| Operating Temperature |
-40℃～75℃ |
| Humidity |
Annual average≤75％；Max≤95％ |
| Protocol |
IEC62056-21Mode C |
| Display |
LCD |
| Lifetime |
>10 years |
| Protection Level |
IP54 |
| Installation |
ANSI |
| Dimensions(mm) |
φ176.5*128mm |
| Daily timing error |
≤0.5s/d(21℃～25℃) |
| Neutral Measurement |
Optional |
| Standards |
ANSI C12.1、ANSI C12.10、ANSI C12.18、ANSI C12.20 |
| Certificate |
ISO9001、STS、KEMA、DLMS |
| MOQ |
1000pcs |
| Delivery time |
30 days |
| Application |
Residential communities, apartments, factories, shopping malls, office buildings, hotels, photovoltaic power stations |
Function Features:
| Structure |
Replaceable battery (optional) |
| Cover material |
Top cover, transparent PC (650 degree glow wire)
Base: PBT+30GF (960 degree glow wire) |
| Metering and Storage |
It has the ability to measure total active energy and total reactive energy, Store energy for 12 months, and supports multi-rate metering functions. |
| Measurement |
Measure and read voltage, current, active power, reactive power, etc |
| Event Record |
Optional:Open record |

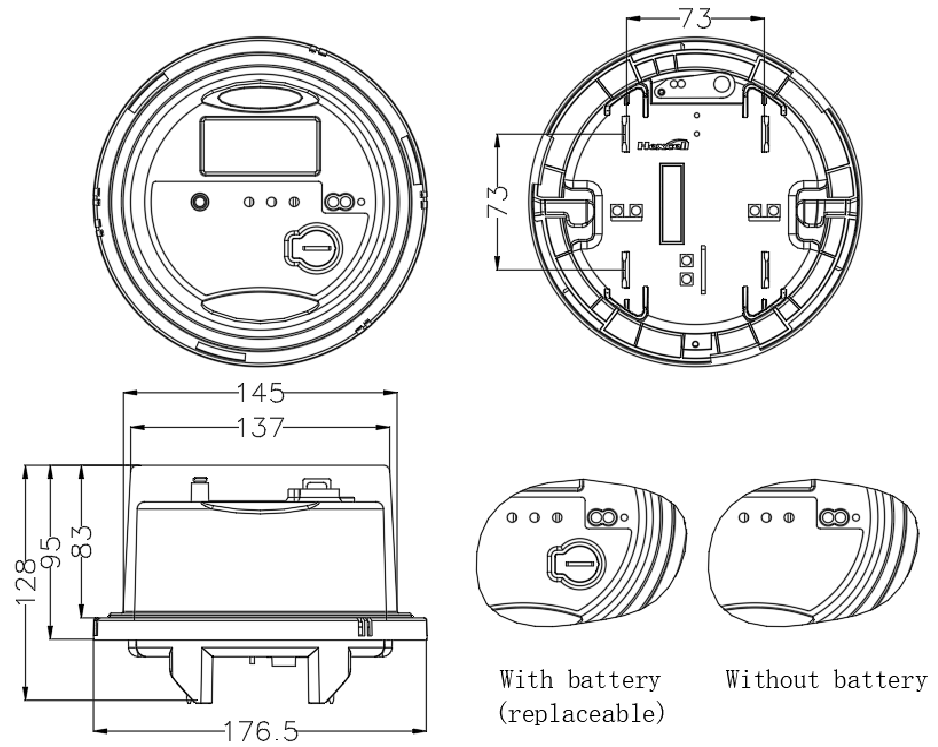

Installation Dimension:
