Product Description：
How can utilities and commercial users achieve accurate three-phase energy measurement with reliable communication, remote data management and efficient electricity usage monitoring? Traditional meters often lack flexible connectivity, real-time consumption visibility and advanced energy management capabilities required for modern smart grid applications.

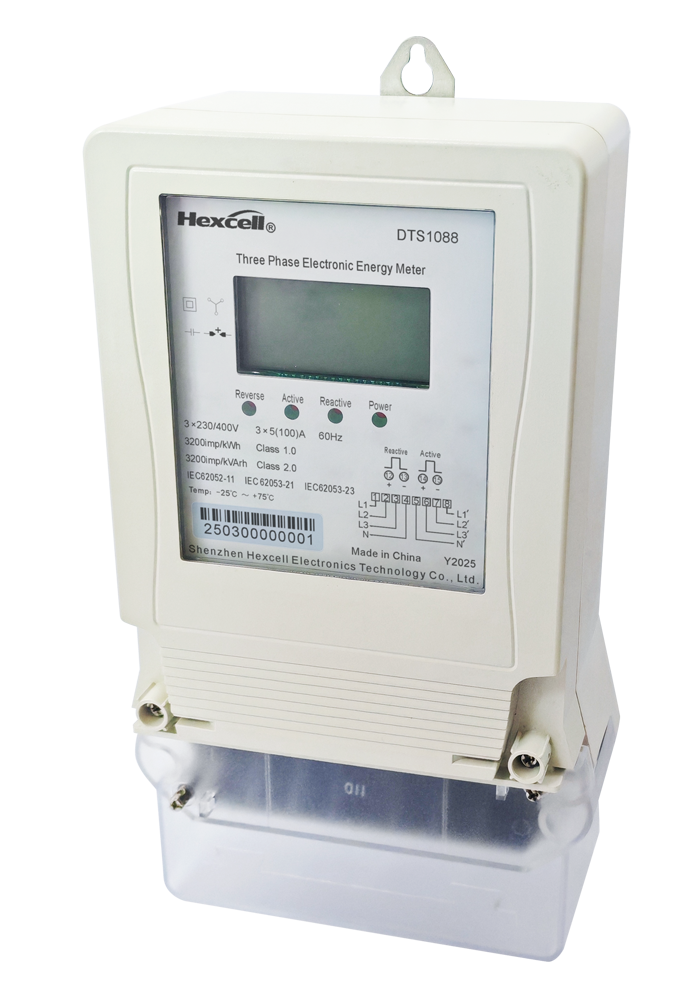

Hexcell Three Phase Electronic Energy Meter (DTSD1088/DTSY1088/DTS1088) combines high-precision energy measurement, flexible communication and intelligent data management in one advanced metering solution. Designed for direct and indirect connection applications, it supports accurate active and reactive energy measurement, remote data upload, and multiple communication options including RS485, IR and LoRa. The meter enables users to monitor electricity consumption, improve billing accuracy and optimize energy management.
Built with advanced SMT technology and designed for reliable long-term operation, Hexcell three phase energy meters support IEC62056-21 / DLMS communication protocols and comply with international metering standards. With proven accuracy, flexible connectivity and wide application capability, the solution is suitable for residential, commercial, industrial and photovoltaic energy projects worldwide.
Technical Specification：
| Mode |
Three-phase four wire(Direct and indirect connection available) |
| Raged Voltage(Un) |
3*58/100V、3*220/380V、3*230/400V、3*240/415V |
| Operating Voltage |
Un≥220V 40%～120%Un Un≤120V 80%～120%Un |
| Starting Current |
0.001In、0.002Ib |
| Basic Current(Ib) |
5A、10A |
| Maximum Current (Imax) |
60A、80A、100A |
| Accuracy |
Active：Class 1；Reactive：Class 2 |
| Frequency |
50Hz、60Hz |
| Communication |
IR,RS485,LoRa |
| Power Consumption |
Voltage circuit: ≤1.5W 5VA Current circuit: ≤2VA |
| Operating Temperature |
-40℃～75℃ |
| Humidity |
Annual average≤75％；Max≤95％ |
| Protocol |
IEC62056-21Mode C/ DLMS |
| Display |
LCD |
| Lifetime |
>10 years |
| Protection Level |
IP54 |
| Installation |
BS type |
| Dimensions(mm) |
305*150*72mm |
| Daily timing error |
≤0.5s/d(21℃～25℃) |
| Connection |
L1L2L3NNL3'L2'L1' |
| Neutral Measurement |
Optional |
| Standards |
IEC62052-11、IEC62053-21、IEC62053-23 |
| Certificate |
ISO9001、STS、KEMA、DLMS |
| MOQ |
1000pcs |
| Delivery time |
30 days |
| Application |
Residential communities, apartments, factories, shopping malls, office buildings, hotels, photovoltaic power stations |
Function Features:
| Structure |
The upper cover is ultrasonic fixed to the base |
| Metering and Storage |
Measuring total active power and total reactive power
Optional: Store power for 12 months and support multi-rate metering |
| Measurement |
Measure and read voltage, current, active power, reactive power, etc |
| Event Record |
Optional:Open record |

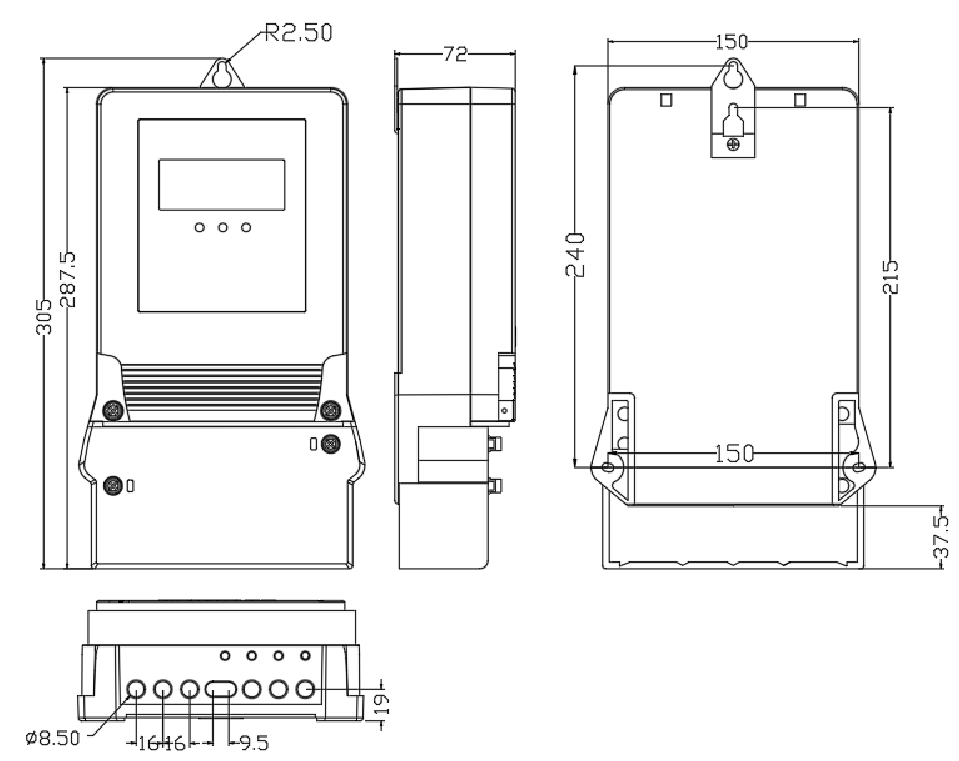

Installation Dimension:
