Product Description：
Many electricity utilities face challenges such as delayed payment collection, high manual meter reading costs, electricity theft risks, and difficulties in managing different tariff policies for residential and commercial users. Traditional electricity billing methods cannot provide real-time consumption information or flexible payment control, especially in regions where prepaid electricity systems are required.
Power utilities need a reliable three-phase prepaid electricity meter that supports secure energy credit management, accurate measurement, flexible tariff control, and seamless communication with advanced metering infrastructure (AMI) systems.

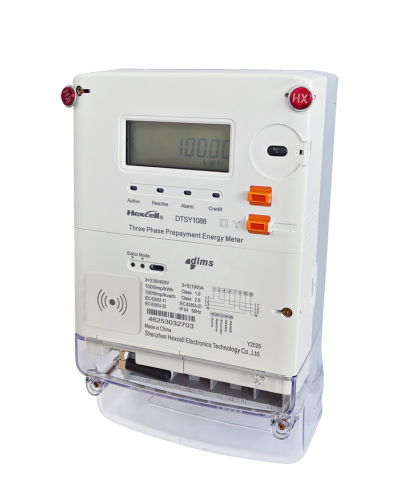

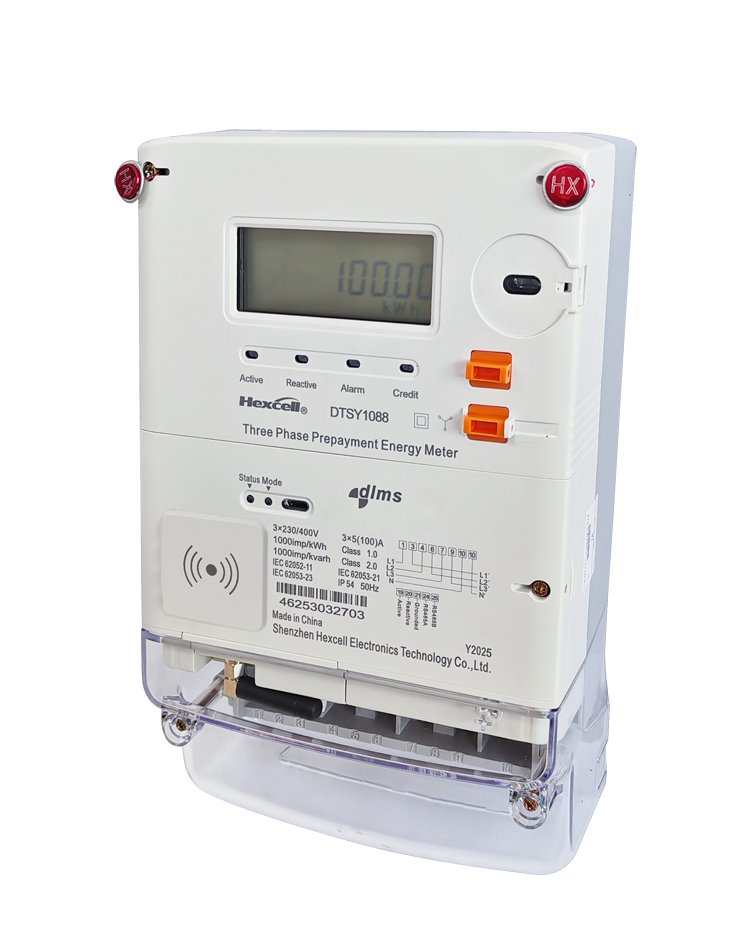

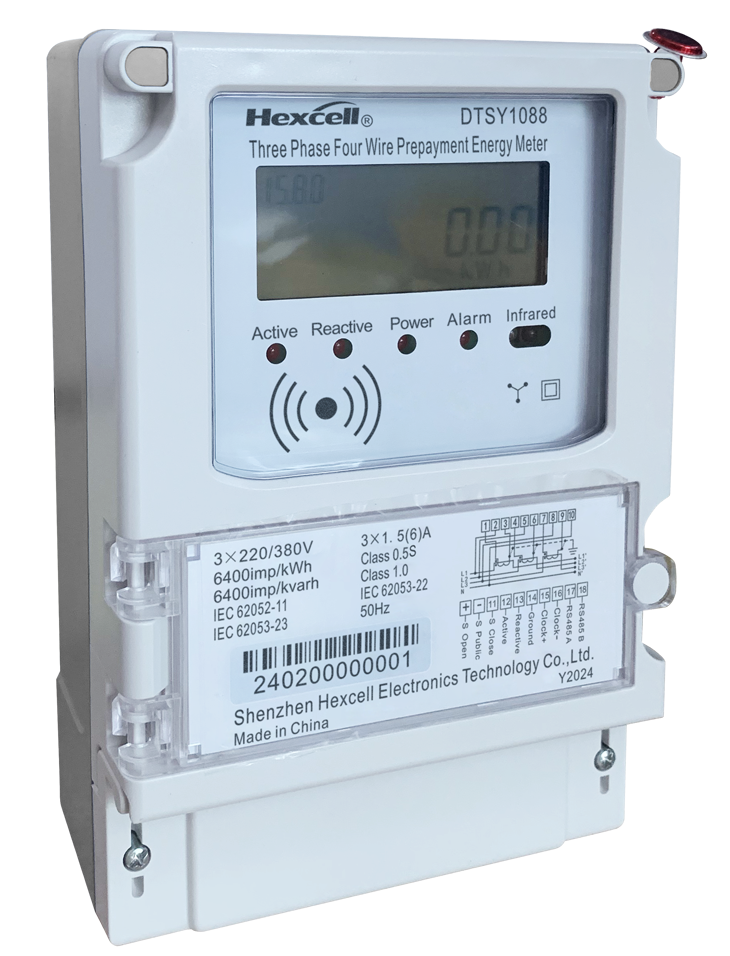

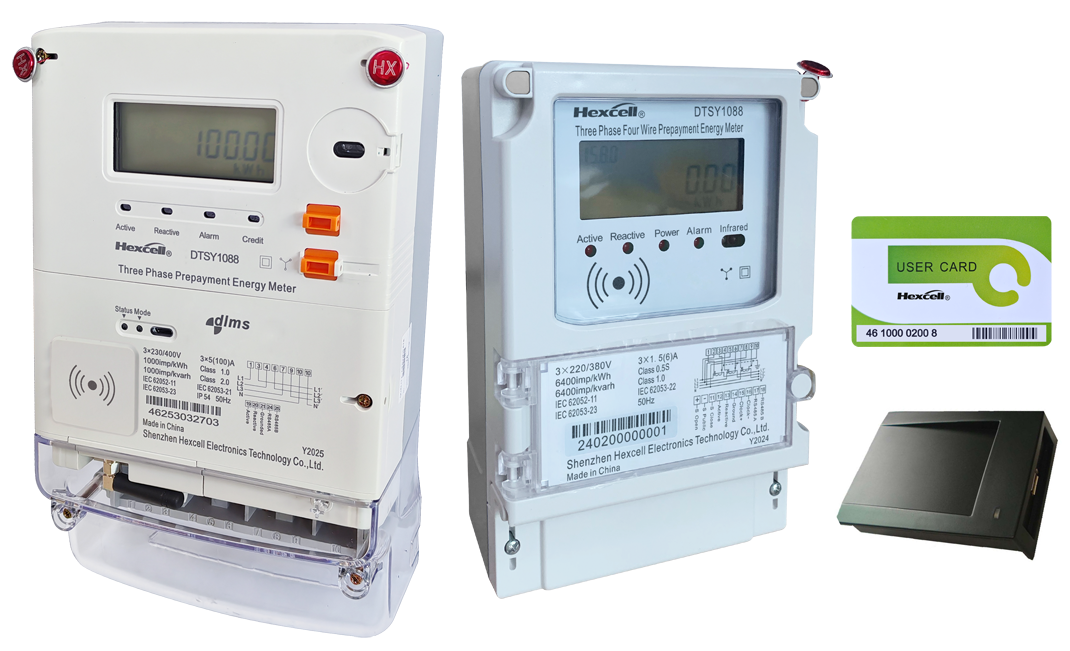

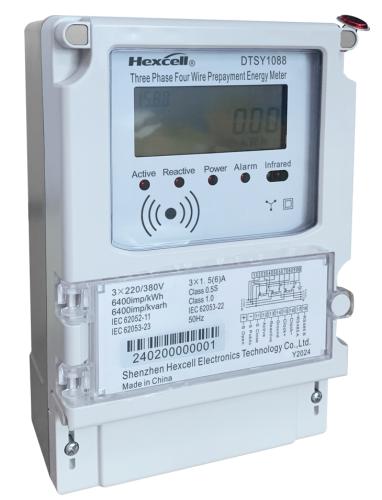

Hexcell DTSY1088 three phase electronic prepaid electricity meter provides a complete prepaid energy management solution based on the principle of "pay first, use electricity later". It helps utilities improve revenue collection efficiency while providing users with transparent electricity consumption management.

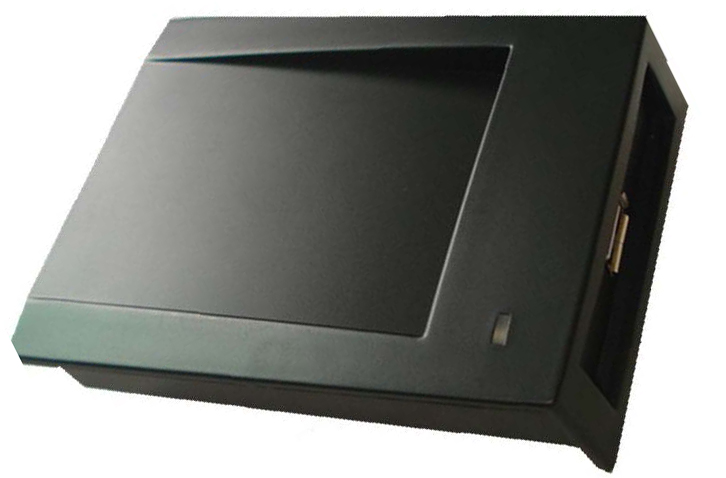

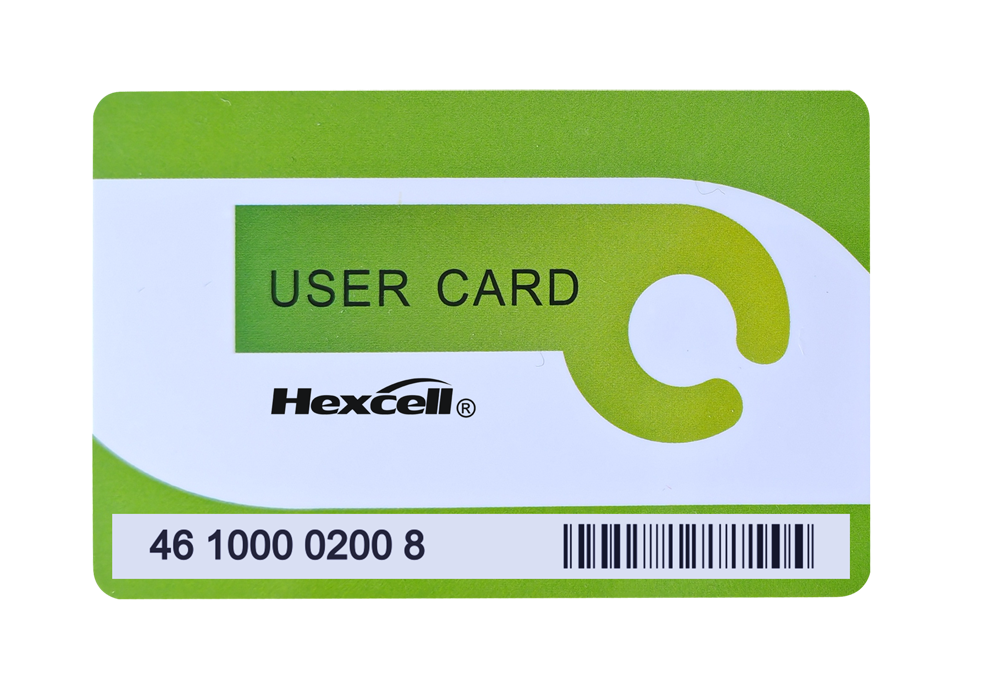

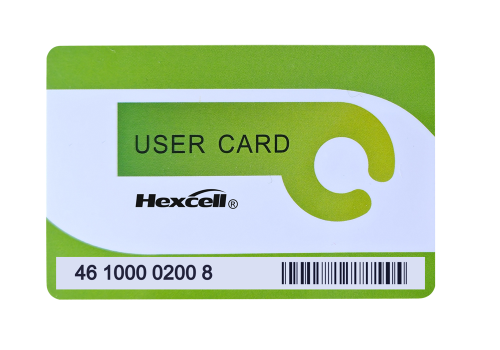

The meter supports RF card-based recharge and remote communication through multiple communication technologies, including RS485, PLC, LoRa, LoRaWAN and infrared communication, allowing flexible deployment in different smart grid environments.
With advanced tariff management, remote meter reading, load control, and AMI system integration capabilities, Hexcell prepaid meters support utilities in implementing modern electricity management systems with improved operational efficiency and customer service.
Hexcell DTSY1088 three phase prepaid electricity meter is designed according to international electricity metering requirements and supports DLMS communication protocol for smart energy applications. The meter provides accurate measurement of active and reactive energy, multi-tariff management, event recording, and remote data collection functions.
The product supports various utility applications including residential communities, apartments, factories, shopping malls, office buildings, hotels, and photovoltaic power stations. It complies with international standards including IEC62052-11, IEC62053-21, IEC62053-23, IEC62055-31 and IEC62055-41, and has certifications including ISO9001, STS, KEMA and DLMS.
Key technical evidence:
Three-phase four-wire energy measurement design
Multiple voltage options: 3×58/100V, 3×220/380V, 3×230/400V, 3×240/415V
Communication options: IR, RS485, LoRa, PLC, LoRaWAN
Operating temperature range: -40℃ to 75℃
Lifetime design: more than 10 years
IP54 protection level for outdoor and harsh environments
Technical Specification：
| Mode |
Three-phase four wire |
| Raged Voltage(Un) |
3*58/100V、3*220/380V、3*230/400V、3*240/415V |
| Operating Voltage |
Un≥220V 40%～120%Un Un≤120V 80%～120%Un |
| Starting Current |
0.002In/0.004In |
| Basic Current(Ib) |
1A、1.5A、5A、10A |
| Maximum Current (Imax) |
6A、10A、60A、80A、100A |
| Accuracy |
Active：Class 1；Reactive：Class 2 |
| Frequency |
50Hz、60Hz |
| Communication |
IR(far), RS485, LoRa,PLC, LoRaWAN |
| Power Consumption |
Voltage circuit: ≤1.5W 5VA Current circuit: ≤2VA |
| Operating Temperature |
-40℃～75℃ |
| Humidity |
Annual average≤75％；Max≤95％ |
| Protocol |
DLMS |
| Display |
LCD |
| Lifetime |
>10 years |
| Protection Level |
IP54 |
| Installation |
BS type |
| Dimensions(mm) |
290*170*88.2/217*145.5*71 |
| Daily timing error |
≤0.5s/d(21℃～25℃) |
| Neutral Measurement |
Optional |
| Standards |
IEC62052-11、IEC62053-21、IEC62053-23、IEC62055-31、IEC62055-41 |
| Certificate |
ISO9001、STS、KEMA、DLMS |
| MOQ |
1000pcs |
| Delivery time |
30 days |
| Application |
Residential communities, apartments, factories, shopping malls, office buildings, hotels, photovoltaic power stations |
Function Features:
| Metering and Storage |
Measure forward/reverse active/reactive energy, store 12-month electric energy, and supports multi-tariff metering, total power consumption of last 12-month |
| Measurement |
Measure and read voltage, current, active power, reactive power, etc |
| Control Tariff |
Supports energy card recharge, deducts fees according to tariff or tiered electricity prices, shuts down payment due to arrears, and can switch between prepayment and postpayment. |
| Multiple Tariff |
Seasonal table, weekly table, daily periods, tariffs, tariff number, public holiday tariff, etc. |
| Event Record |
It can record events such as switch-on and switch-off, recharge, cover opening, power off, reverse, undervoltage, overvoltage, etc |
| Clock |
Daily timing error ≤ 0.5S (optional) |
| Friendly time |
No switch-off under arrears |

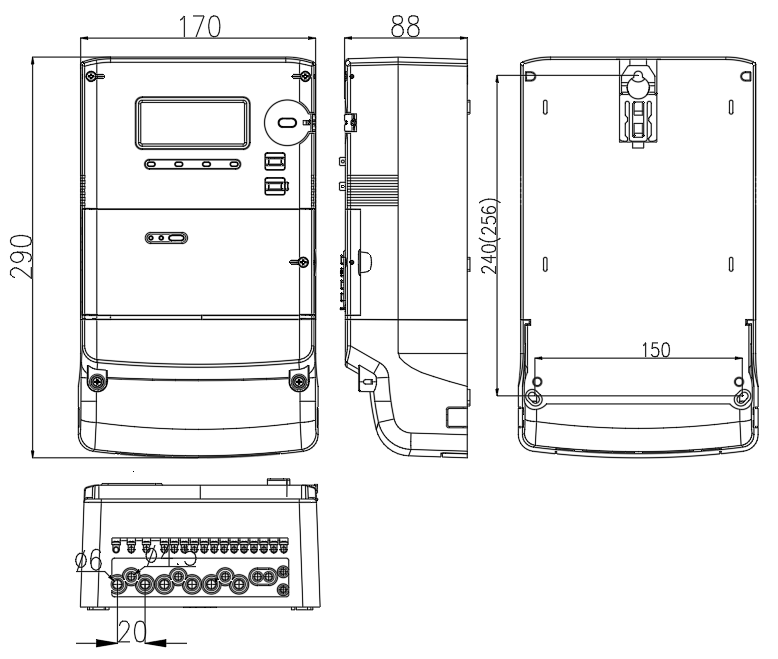

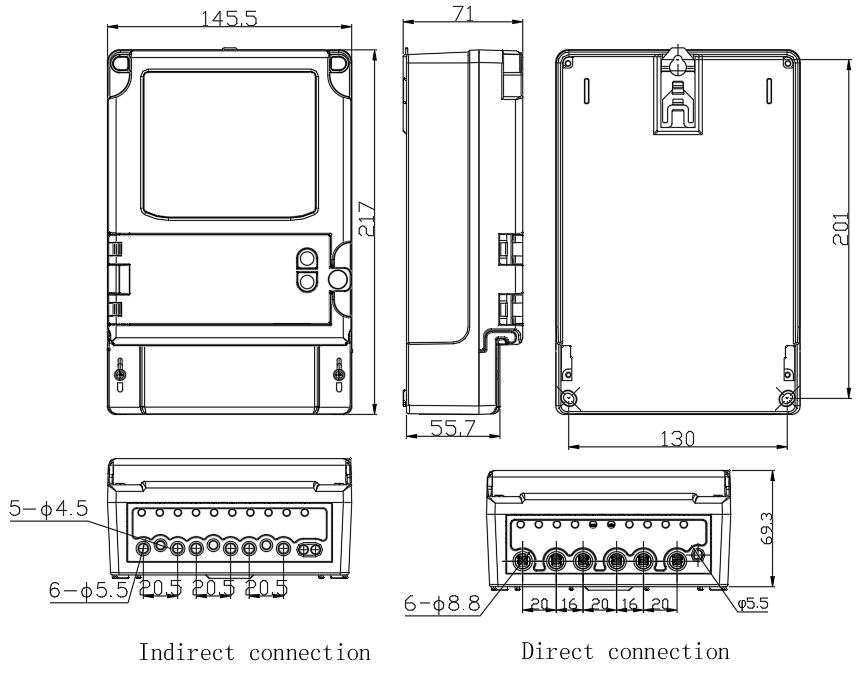

Installation Dimension:
