Product Description：
Current Challenges:
Utility companies frequently face difficulties in fee collection, high risks of payment arrears, and complex tariff management across diverse customer segments and international markets. Traditional post-paid models result in high collection costs and a lack of transparency regarding electricity usage, hindering precise metering and management for residential communities, apartments, factories, shopping malls, office buildings, hotels, and photovoltaic (PV) power stations.
Hexcell IC Card Meter Solution

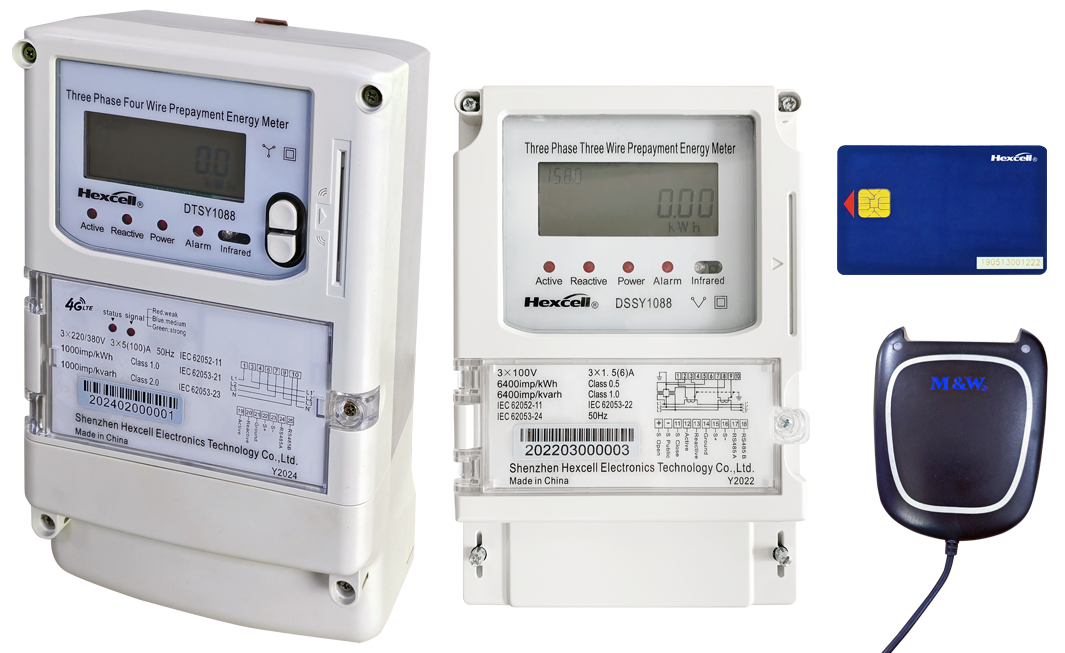

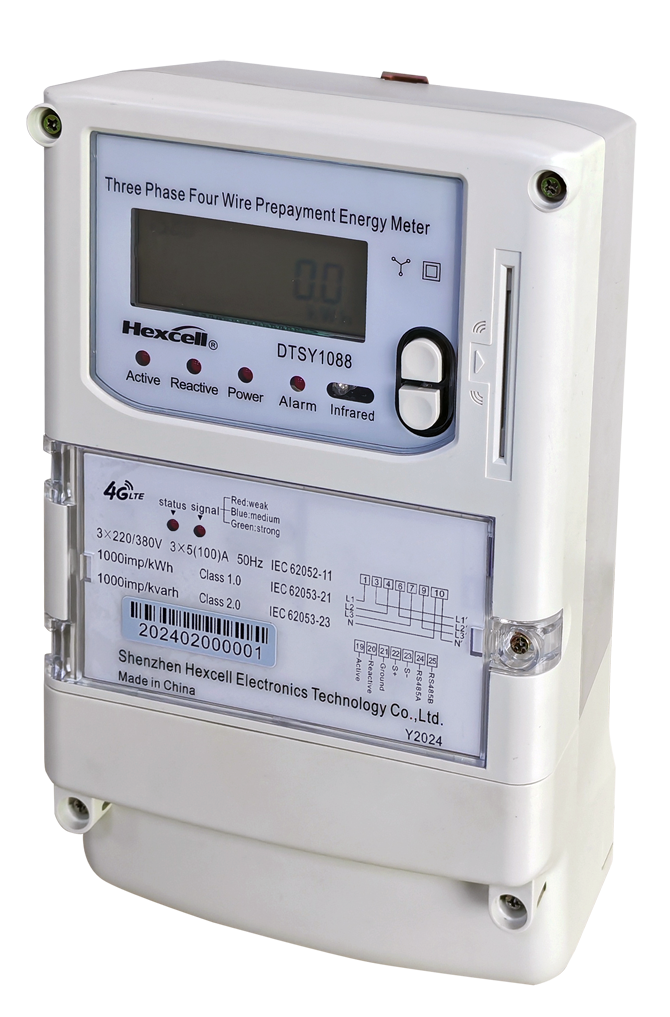

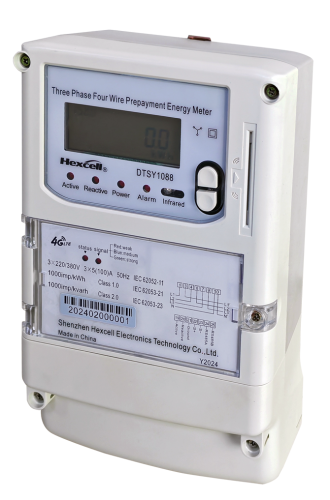

The Hexcell three-phase IC card electricity meter (DTSY1088/DTS1088) utilizes a "pay-before-use" model. It facilitates information exchange between users and the utility company via local contact-based IC cards or remote meter reading systems, flexibly accommodating tariff control requirements across different countries. The meter supports features such as preset power freezing, fault alarms, automatic power disconnection, and automated meter reading. It communicates with AMI systems via 2G/4G, PLC, RS485, LoRa, or LoRaWAN, providing accurate consumption data to prepaid users and generating daily/monthly usage reports for utility companies, while also supporting seamless switching between prepaid and post-paid modes.
Key Advantages
Compliant with standards such as IEC62052-11, IEC62053-21, IEC62053-23, IEC62055-31, and IEC62055-41, and holding ISO9001, STS, KEMA, and DLMS certifications, this meter is designed for three-phase four-wire systems. It supports multi-tariff billing, event logging, forward/reverse active and reactive energy metering, and 12 months of data storage. Widely applicable in residential, industrial, commercial, and PV sectors, it offers high reliability and a service life exceeding 10 years.
Technical Specification：
| Mode |
Three-phase four wire |
| Raged Voltage(Un) |
3*58/100V、3*220/380V、3*230/400V、3*240/415V |
| Operating Voltage |
Un≥220V 40%～120%Un Un≤120V 80%～120%Un |
| Starting Current |
0.002In/0.004In |
| Basic Current(Ib) |
1A、1.5A、5A、10A |
| Maximum Current (Imax) |
6A、10A、60A、80A、100A |
| Accuracy |
Active：Class 1；Reactive：Class 2 |
| Frequency |
50Hz、60Hz |
| Communication |
IR,RS485,LoRa, PLC,2G/4G,LoRaWAN |
| Power Consumption |
Voltage circuit: ≤1.5W 5VA Current circuit: ≤2VA |
| Operating Temperature |
-40℃～75℃ |
| Humidity |
Annual average≤75％；Max≤95％ |
| Protocol |
IEC62056-21Mode C/ DLMS |
| Display |
LCD |
| Lifetime |
>10 years |
| Protection Level |
IP54 |
| Installation |
BS type |
| Dimensions(mm) |
290*170*85 |
| Daily timing error |
≤0.5s/d(21℃～25℃) |
| Neutral Measurement |
Optional |
| Standards |
IEC62052-11、IEC62053-21、IEC62053-23、IEC62055-31、IEC62055-41 |
| Certificate |
ISO9001、STS、KEMA、DLMS |
| MOQ |
1000pcs |
| Delivery time |
30 days |
| Application |
Residential communities, apartments, factories, shopping malls, office buildings, hotels, photovoltaic power stations |
Function Features:
| Structure |
Replaceable modules |
| Metering and Storage |
Measure forward/reverse active/reactive energy, store 12-month electric energy, and supports multi-tariff metering, total power consumption of last 12-month |
| Measurement |
Measure and read voltage, current, active power, reactive power, etc |
| Control Tariff |
Support card recharge, deducts fees according to tariff or tiered electricity prices, switch-off under arrears, switch mode between prepayment and postpayment. |
| Multiple Tariff |
Seasonal table, weekly table, daily periods, tariffs, tariff number, public holiday tariff, etc. |
| Event Record |
It can record events such as switch-on and switch-off, recharge, cover opening, power off, reverse, undervoltage, overvoltage, etc |
| Clock |
Daily timing error ≤ 0.5S (optional) |
| Friendly time |
No switch-off under arrears |
| Card type |

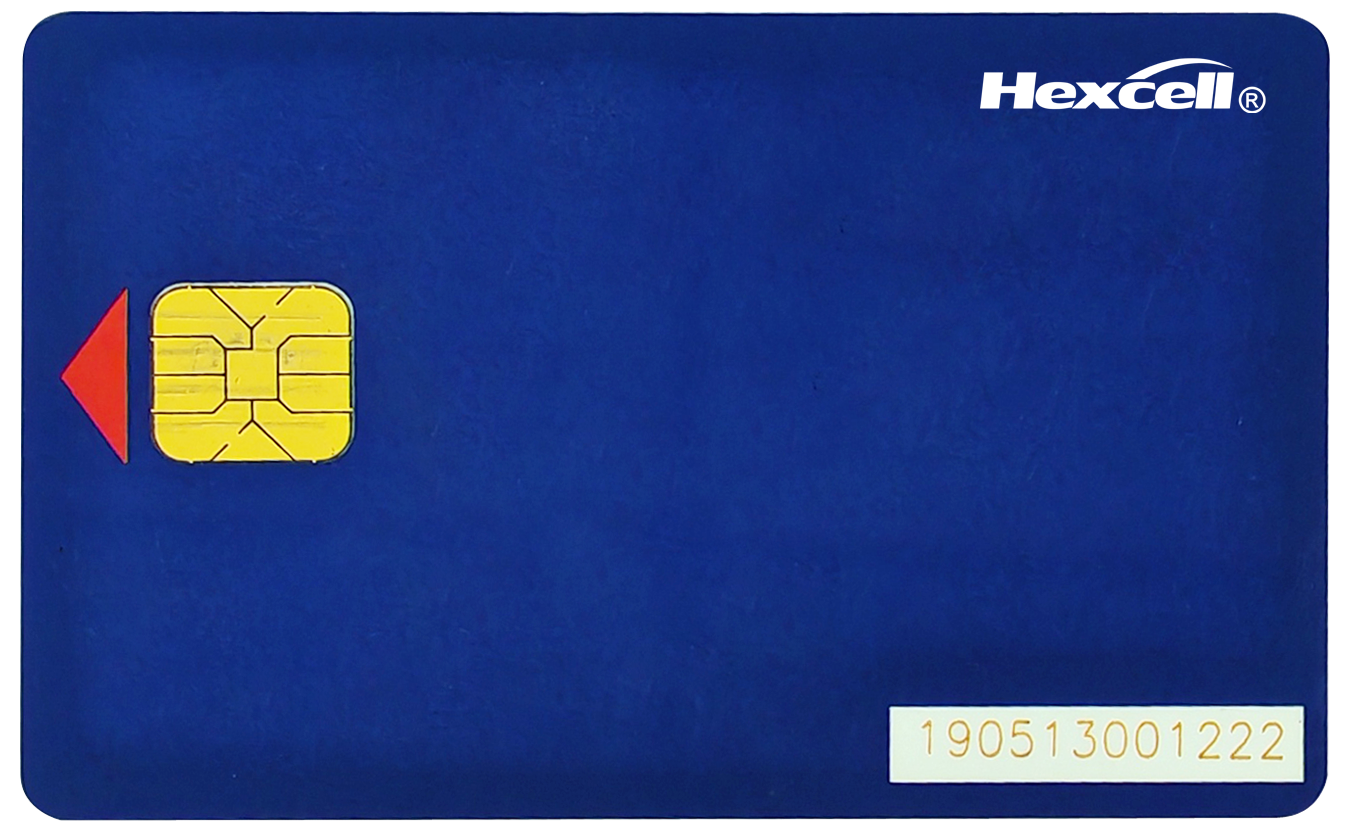

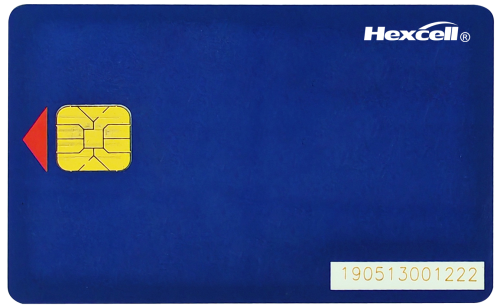

Contact IC card |

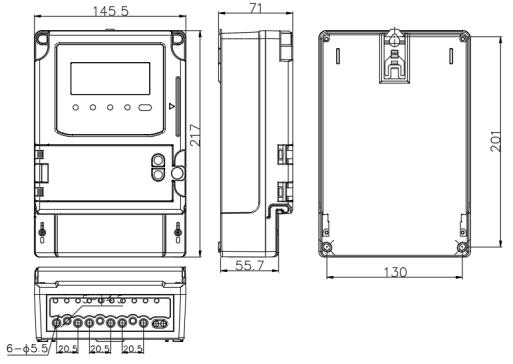

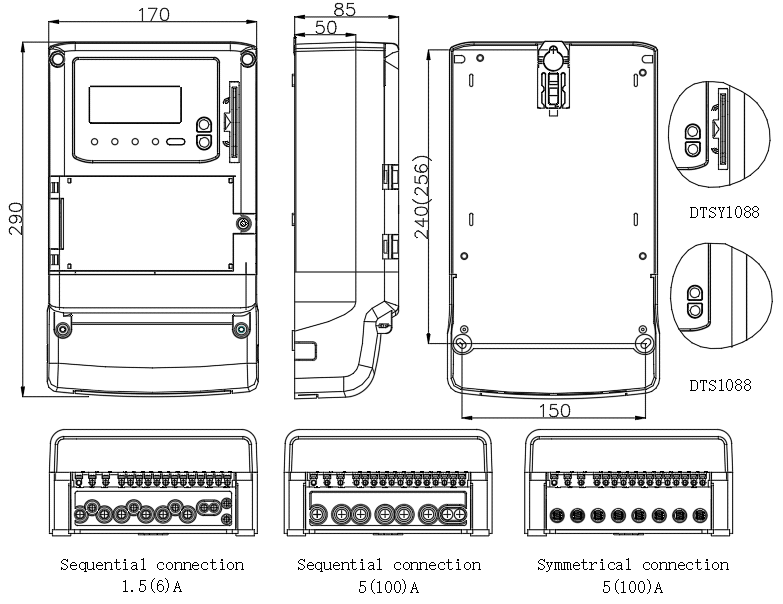

Installation Dimension:
