Product Description：

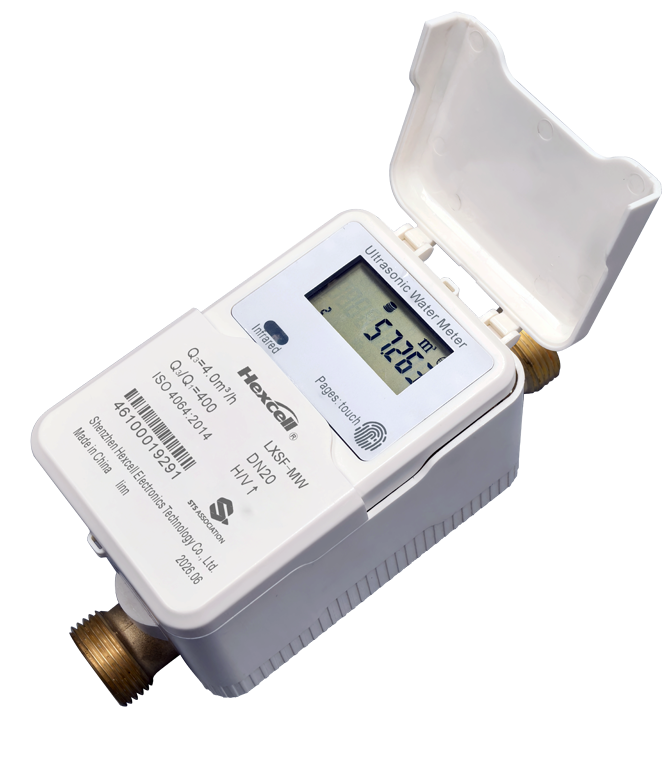

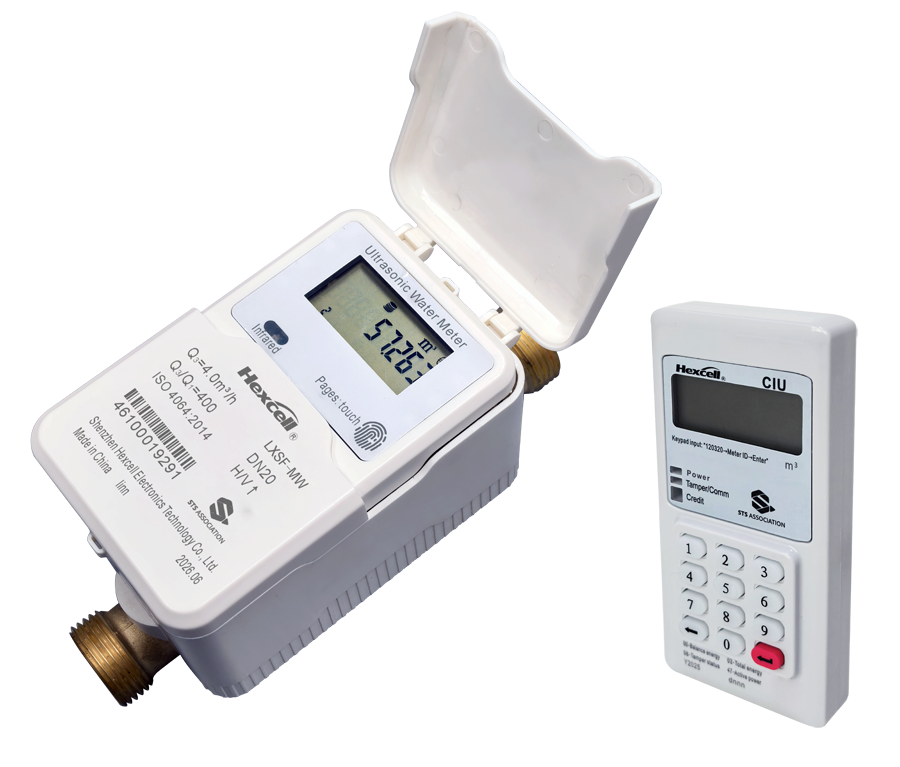

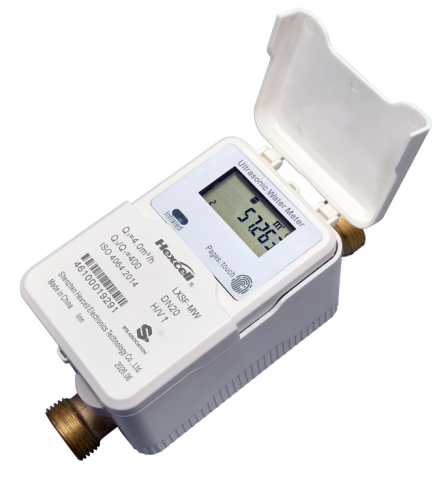

This product is a remote reading water meter,which uses ultrasonic time difference method to measure water consumption. It has the features of measuring accurate and stable, high range ratio, ultra-low initial flow and pressure loss, no long-term wear error. The meter materials meet the sanitation standards of drinking water metering instruments and conform to ISO4064:2014 and other standards. Prepaid/postpaid can be switched. The water meter communicates with CIU via LoRa ; DCU uplink 2G/4G communication, downlink through LoRa, RS485 channels and water meter communication, the collected data can be connected to the customer system, DCU data reading, setting, recharge. Pre-pay/Post-pay can be switched. The company's system can also be used for meter reading and management functions.

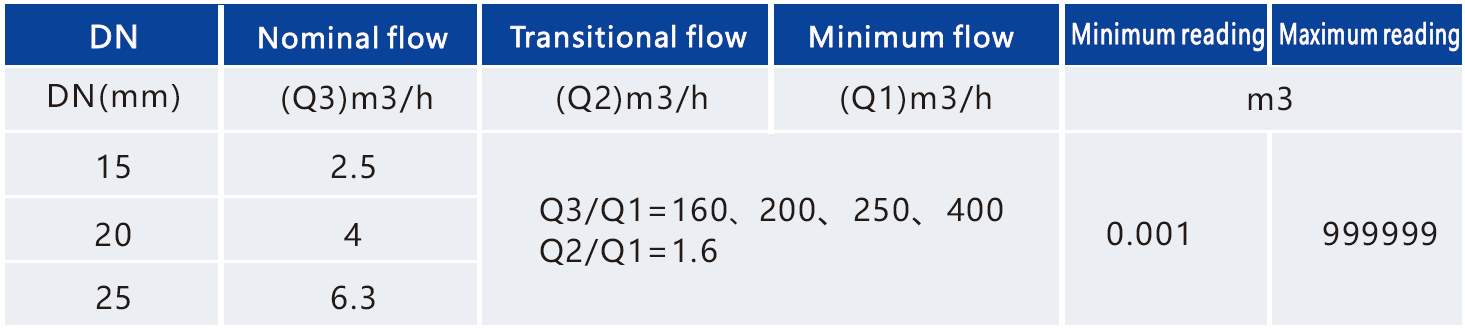

Technical Specification：
| Accuracy class |
Class 2 |
| Environmental class |
Class O |
| Temperature rating |
T30/T50 |
| Pressure rating |
MAP16 |
| Pressure loss |
△p63△p40 |
| Sensitivity level of upstream flow |
U3/U0 |
| Sensitivity level of downstream flow |
D3/D0 |
| Water display type |
LCD |
| Installation method |
Horizontal/Vertical |
| Meter body material |
Brass/ Plastic |
| Protection class（IP） |
IP68 |
| Communication method |
UPlink:LoRa,2G/4G,RS485 Downlink:LoRa |
| Valve |
Built-in ball valve |
| Metering method |
Ultrasonce |
| Standards |
GB/T778-2018、JJF1777-2019、CJ/T224-2012、ISO4064:2014、IEC62055-31、IEC62055-41 |
| Certificate |
ISO9001、STS |
| MOQ |
1000pcs |
| Delivery time |
30 days |
| Application |
Residential communities, urban residences, hotels, schools, hospitals, shopping malls, factories, water companies |
Function Features:
| Prepayment |
Support prepayment function, prepaid and postpaid can be switched, low credit alarm |
| Remote control |
Remote recharge, close valve, open valve, clear credit, clean tamper |
| Metering and Storage |
Metering forward water and store freeze data for the last 12 months |
| Early warning function |
Battery under voltage, magnetic interference, purchased credit and prepayment usage reach the threshold |
| Event record function |
Credit clearing and water-tampering clearing record, recharge record and other events storage |
| Ladder water price |
Can see different benchmark price and ladder price according to the user type and consumption |

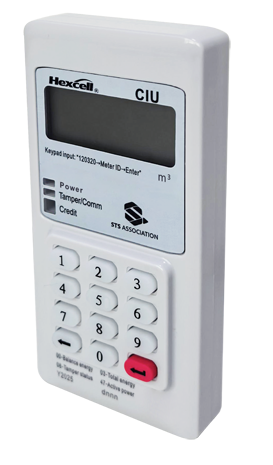

| CIU button |
Reading, recharge, close valve, open valve, clear credit, clean tamper, query event records by short code |
| Prepaid/Postpaid |
Optional |

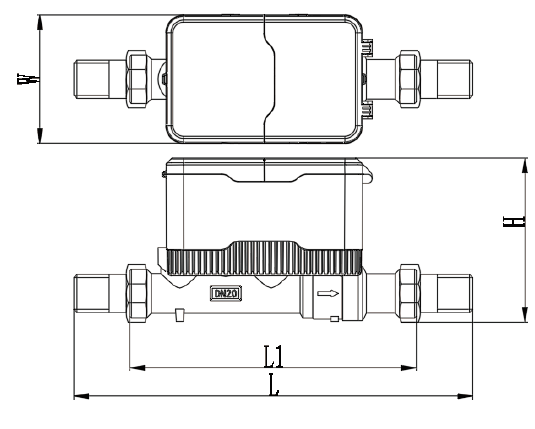

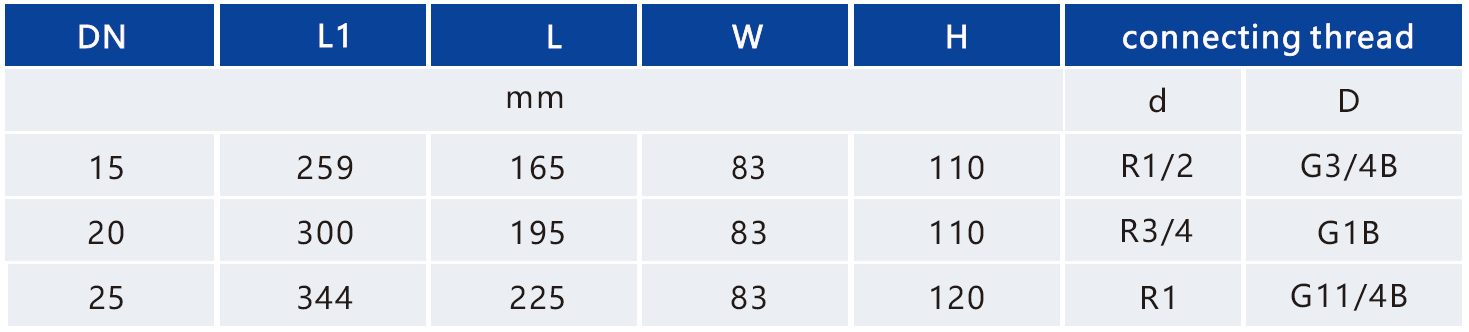

Installation Dimension:
