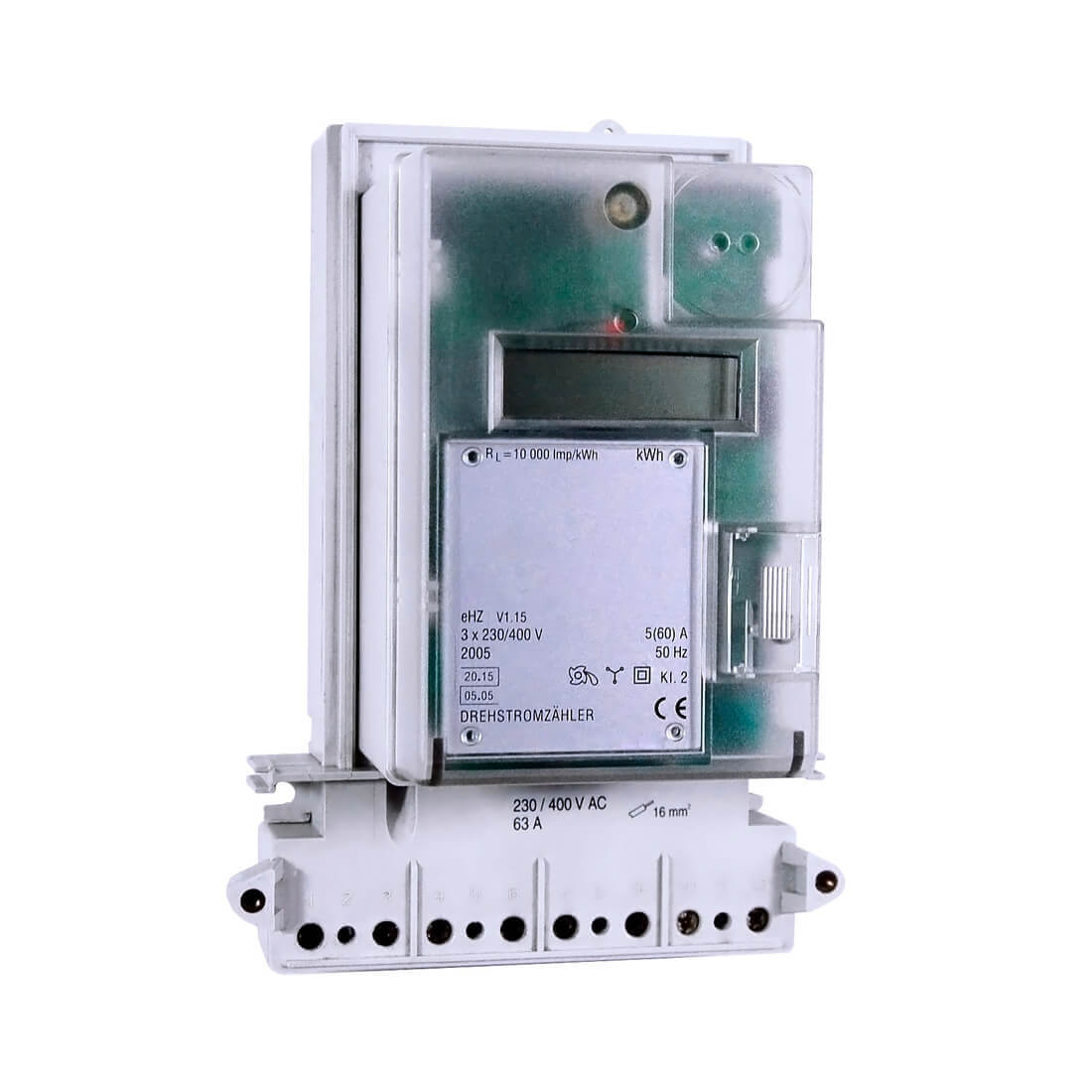

SMART THREE PHASE POSTPAID EHZ METER DTSD1088
DESCRIPTION
The three-phase four-wire multi-function meter 1088 EHZ meter is used to accurately measure total active / reactive energy, forward and inverse active / reactive energy, and maximum demand. And real-time measurement and reception of process parameters, such as active / reactive power, apparent power, voltage, current, power factor, frequency, etc., and realize the use of time control, automatic storage of day-to-day requirements, and load configuration files and event records. The DTSD1088 power meter makes it easy to use time energy measurement and efficient processing. It complies with applicable standards of IEC62052-11, IEC62053-21, IEC62053-23, IEC62053-661, IEC62054-21, IEC62056-61, IEC62059-11 and IEC62059-21.
FEATURES
1.Customized meter design for Finland Utility.
2.Special terminal block connection for easy wiring.
3.Terminal cover &front cover with detecting features.
4.With backup battery for RTC.
5.Load Profile(Optional)
6.MD measurement
7.Over-load protection: Automatic power-off as load exceeds the specified value(optional)
8.With optical communication port(IEC1107)
9.Open protocol: DLMS/COSEM(Optional)
10.Advanced AMI integration (Optional)
