Smart Split Prepaid RF Remote Reading Water meter

INQUIRY

Description

SMART SPLIT PREPAID RF REMOTE READING WATER METER

FEATURES

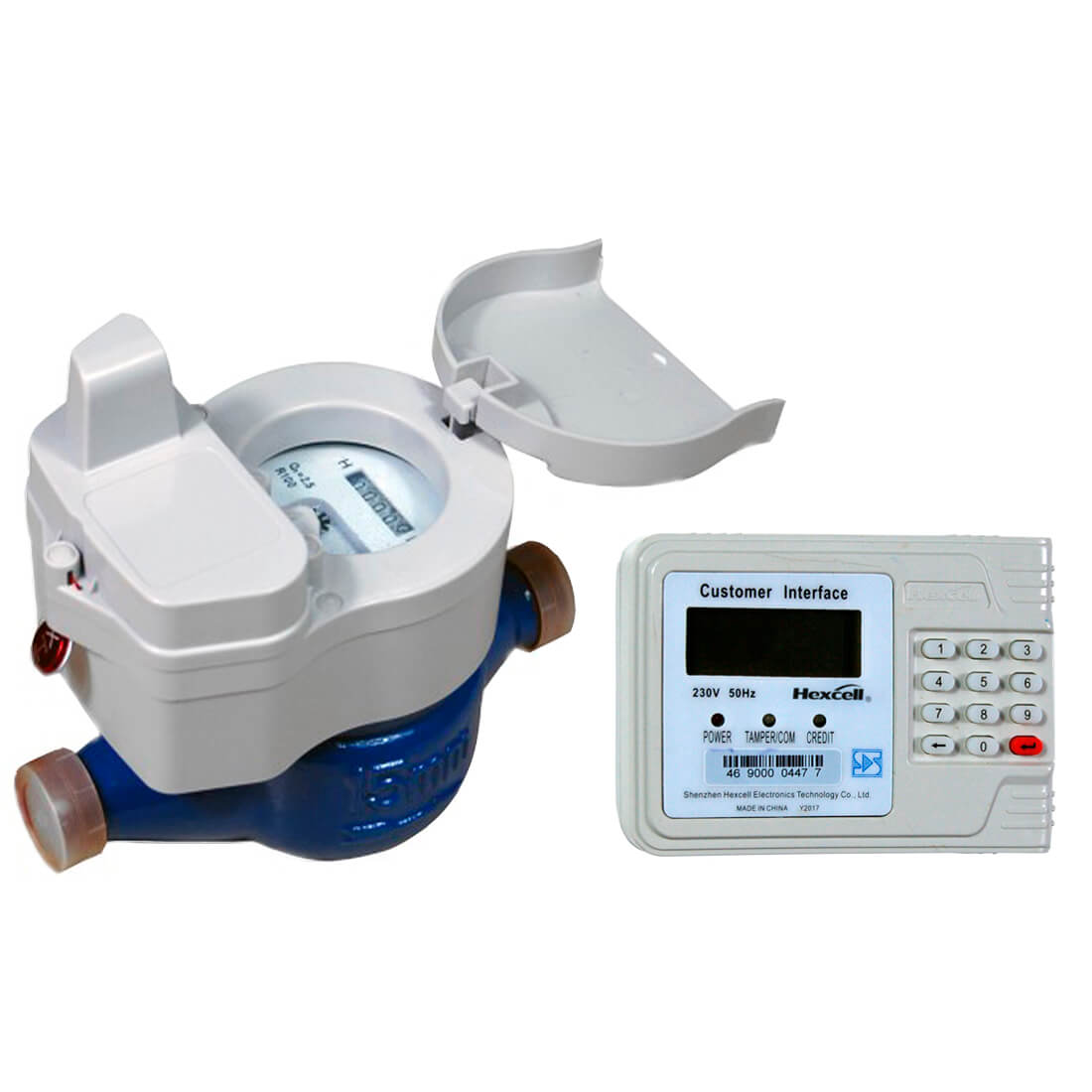

1.The separation of Water meter and CIU, can realize the function of indoor charge, data query, valve controlling.
2.Low water volume warning function,Battery undervoltage warning function
3.Surplus water
4.Remote reading function, realize the data management and remote reading.
5.Anti-magnetic attacking function, automatically close once attacked.
6.Battery power off will automatically close valve, Re-open valve after changing new battery.
7.Long transmission distance, low power consumption, small size, high reliability.
8.High system compatibility,easy installation and maintainance,high success rate of reading.
9.Remote prepaid function.

SPECIFICATIONS
Base meter specification

Product	15mm	20mm	25mm
Accuracy	2.0
leakproofness	1.6Mpa water pressure，No leak within 15 minutes
Length	165mm	195mm	225mm
Q4	3.125m³/h	5m³/h	7.875m³/h
Q3	2.5m³/h	4m³/h	6.3m³/h
Q2	0.05m³/h	0.08m³/h	0.126m³/h
Q1	0.0313m³/h	0.05m³/h	0.0788m³/h
Starting flow	≤0.012m³/h	≤0.016m³/h	0.020m³/h
Minimum reading	0.0001m³
Maximum reading	99999.9999m³
Small flow error	≤±5%
Flow error	≤±2%
Working Temperature	0℃—30℃(Water Meter)
Working Water Pressure	0.0——1.0Mpa OR 0.0——1.6Mpa for Option
Maximum Admissible Pressure(MAP)	1.6Mpa
Diameter (DN)	15mm		20mm	25mm
Power model	Replaceable Lithium battery,
